2025 LED Crystal Film Screen Models: Specifications & Applications Guide
2025 LED Crystal Film Screen Models: Specifications & Applications Guide
In the fast-evolving world of digital displays, LED crystal film screens have emerged as a revolutionary solution, blending ultra-thin design, high transparency, and flexible installation. Unlike traditional LED walls, these innovative displays use PET + nano-silver wire materials and advanced micro-LED technology to deliver stunning visuals while seamlessly integrating into various environments. This guide explores the top LED crystal film screen models of 2025, their technical specifications, and ideal use cases to help you make an informed decision for your commercial or creative project.
What Are LED Crystal Film Screens?
LED crystal film screens are a subset of transparent LED displays characterized by their flexible, ultra-thin crystal film panels. Key features include:
- Exceptional Transparency: Transmittance ranges from 60% to 95%, allowing natural light to pass through while maintaining vivid display quality.

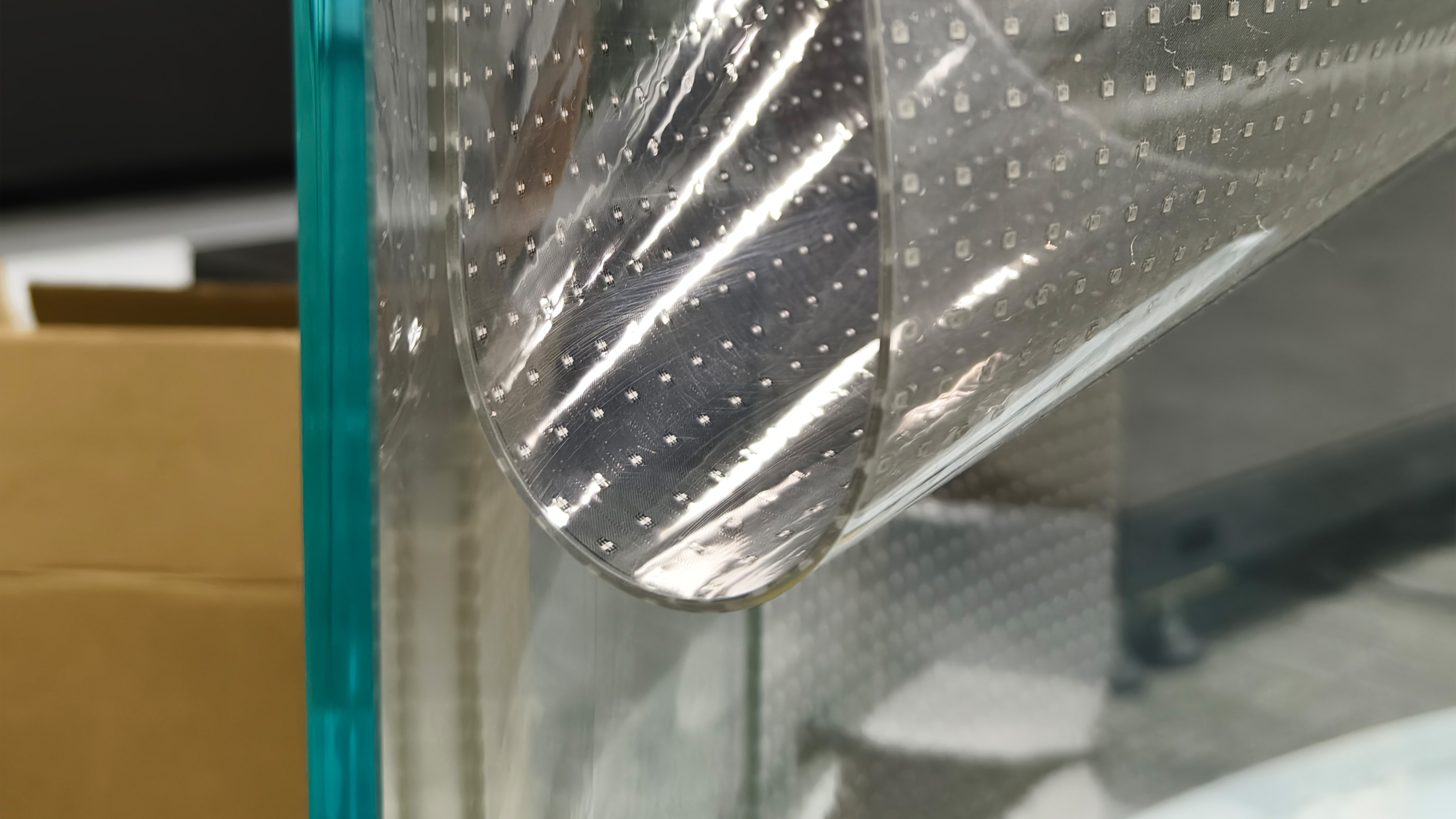

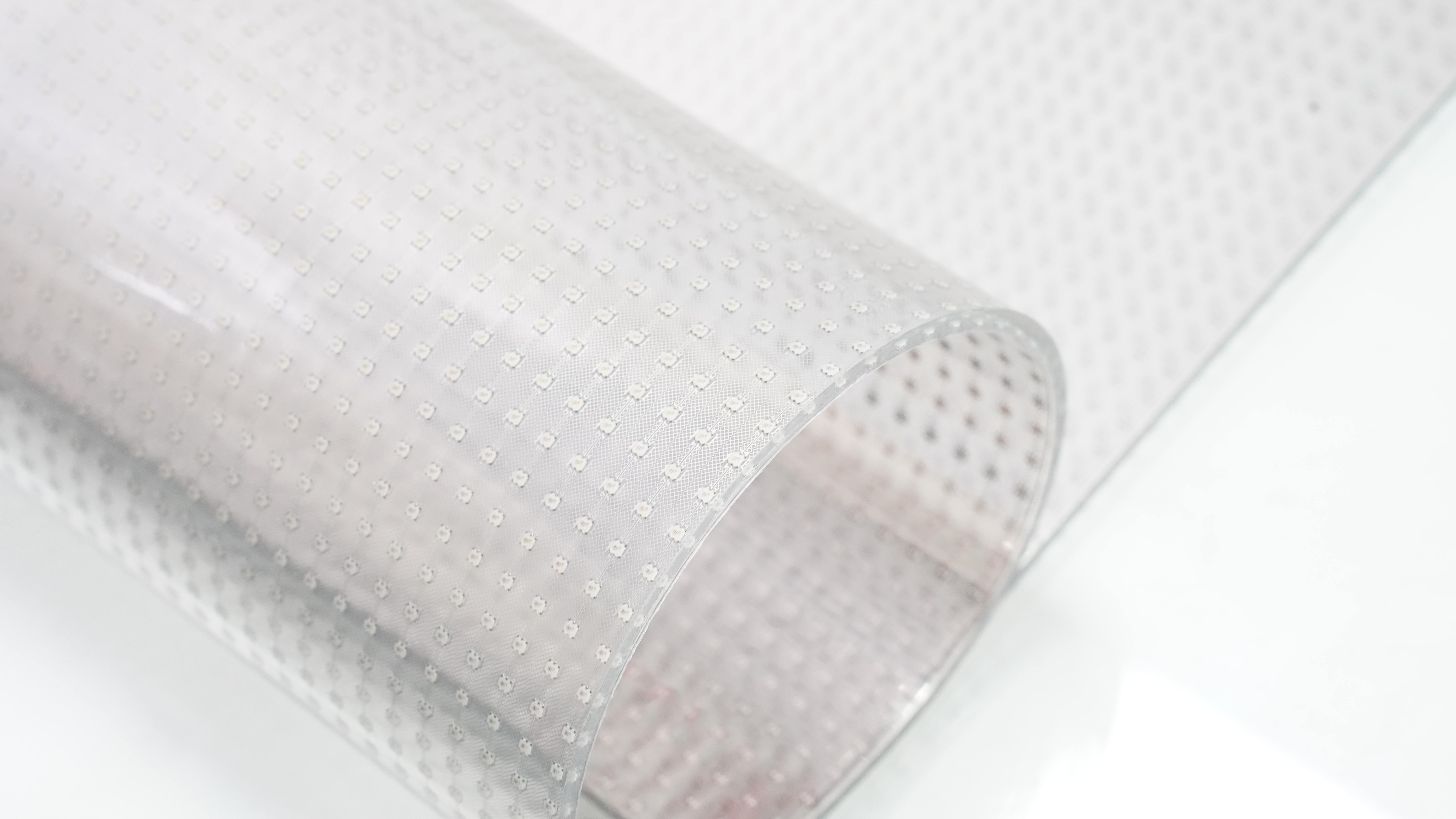

- Flexibility & Customization: Can be bent, folded, or cut to fit curved surfaces, irregular shapes, and custom sizes without compromising performance.
- Lightweight Design: Weighing just 1–3.5 kg and measuring 1–3 mm thick, they eliminate the need for heavy support structures.
- Easy Installation: Directly attachable to glass surfaces, walls, or ceilings with minimal setup, reducing installation time by up to 70% compared to traditional LEDs.
These features make them ideal for glass curtain walls, commercial windows, museum exhibits, and interactive installations where space and aesthetics are critical.
Our LED Crystal Film Screen Models & Technical Advantages

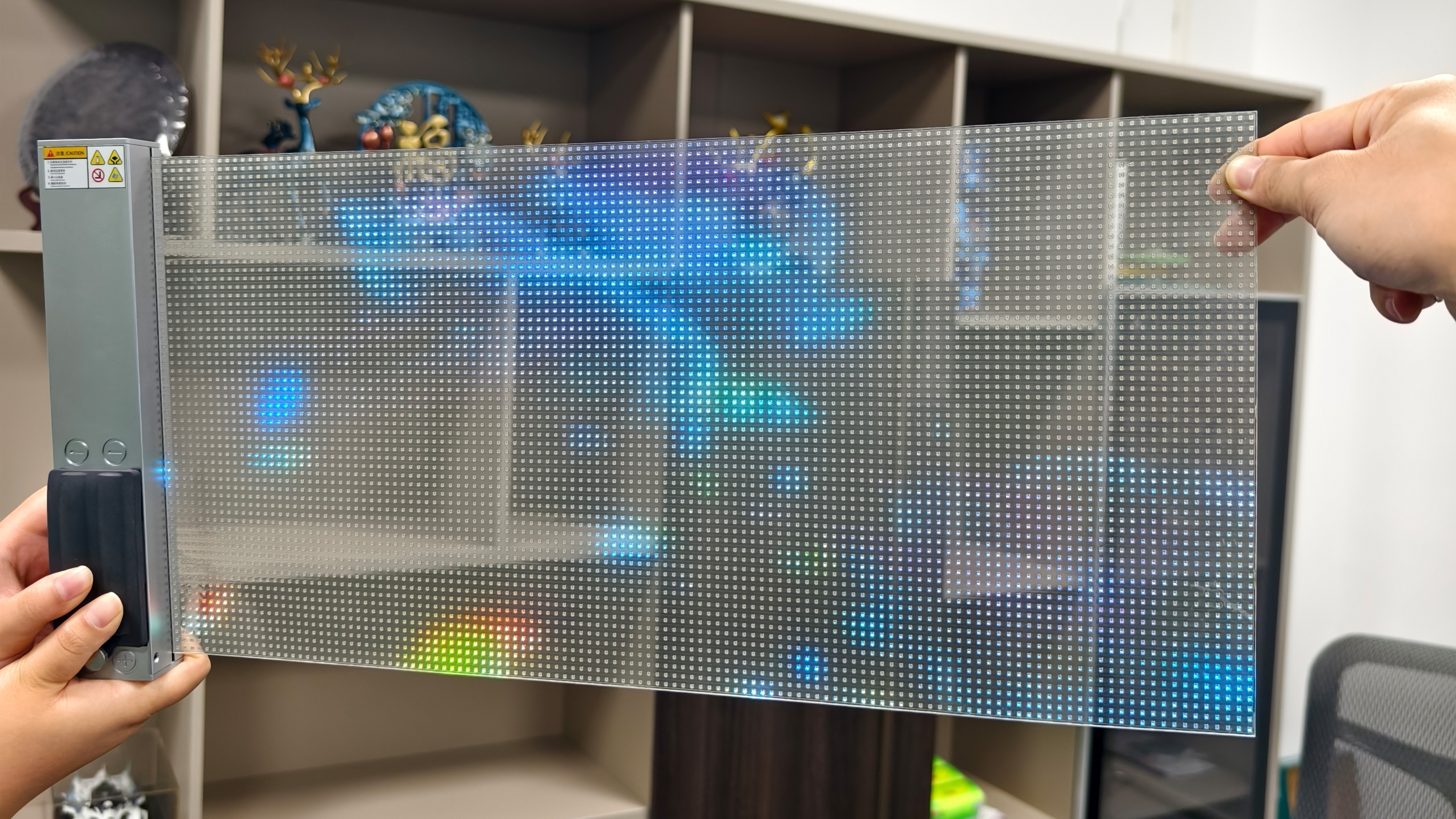

Our 2025 LED crystal film screens offer outstanding performance with four main models: P4, P6, P8, and P10. Each model is equipped with cutting-edge technologies and our brightness has reached 5000cd/㎡, meeting various high-demand scenarios.
- LED Chips: Chip sizes reduced to 0.6–1.2 mm, enabling higher pixel density and our brightness reaches 5000cd/㎡ with 30% lower power consumption.
- Flip-Chip Technology: Eliminates wire bonds, reducing panel thickness by 8–12 mm and operating temperature by 15% (38°C at 1000 nits).
- Quantum Dot-Enhanced Phosphors: Extends lifespan to 100,000 hours with <0.1% annual brightness degradation, ensuring long-term reliability.

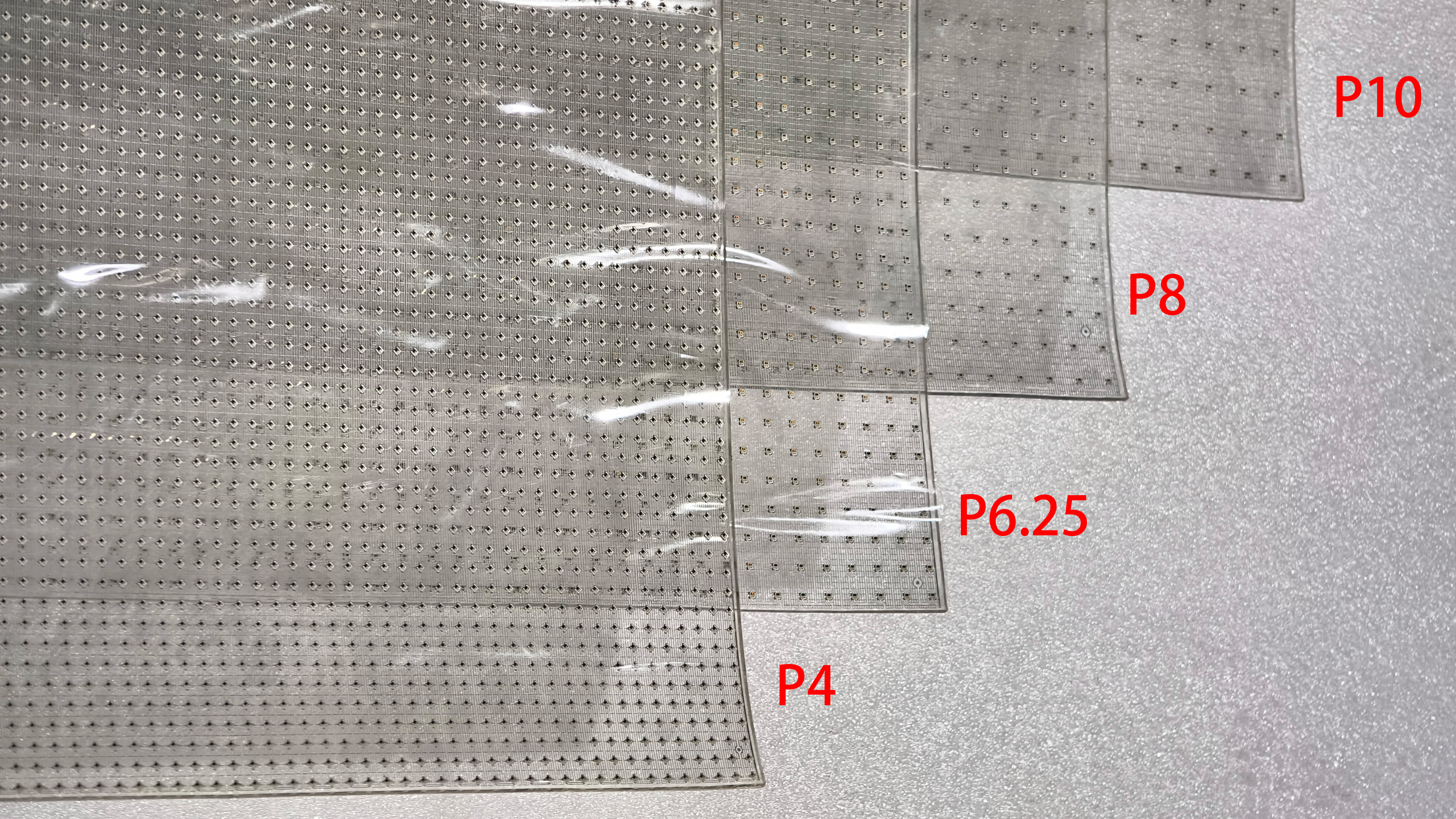

- Seamless Splicing: Micron-level precision allows multiple panels to combine into a single "canvas," eliminating image breakage for immersive visuals.
Application Scenarios by Model
Choosing the right model depends on your specific use case. Below are recommended scenarios for our P4/P6/P8/P10 models:
1. Commercial Advertising: P10 Model

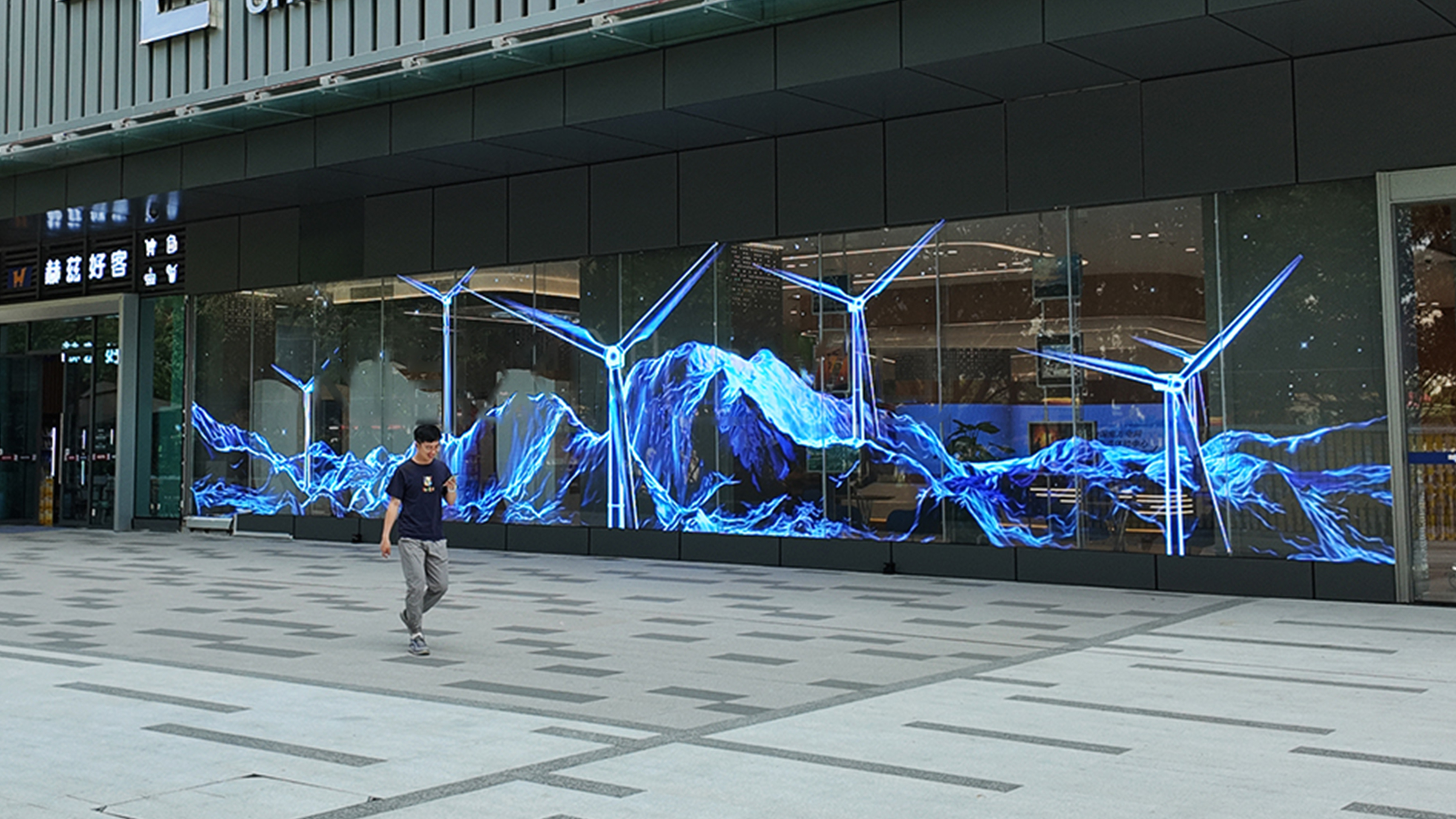

With 90% transmittance and a viewing distance of >10m, the P10 model is perfect for glass curtain wall advertising in shopping malls and urban landmarks. A case study at a commercial center showed that P10 crystal film screens increased foot traffic by 35% due to their eye-catching 3D visuals and transparent design, which didn’t block storefront visibility.
2. Museum Exhibits: P8 Model
Museums use the P8 model for interactive displays, as its 85% transmittance balances visibility of physical artifacts with dynamic content. At a tech museum, P8 panels were attached to glass display cases, displaying 3D animations of ancient artifacts alongside physical exhibits. Visitors reported a 40% better understanding of exhibits compared to traditional static displays.
3. Art Installations: P6/P8 Models
Our P6 and P8 models are favorites among artists for their flexibility and ultra-thin profile. A recent installation in an art zone used curved P6/P8 panels to create a "floating" digital waterfall, where the transparent screen blended with natural light to produce a surreal, immersive effect.
4. Corporate Meeting Rooms: P4/P6 Models
The high pixel density of our P4 and P6 models makes them ideal for 4K video conferencing. A multinational company installed P4/P6 panels on meeting room glass walls, enabling seamless video calls while maintaining room brightness. The lightweight design eliminated the need for structural modifications.
LED Crystal Film Screen vs. Traditional LED: A Comparison
Why choose LED crystal film screensover traditional led walls? Here’s how they stack up:
LED Crystal Film Screen | Traditional LED Wall |
| Thickness: 1–3 mm | Thickness: 50–100 mm |
| Weight: 1–3.5 kg/m² | Weight: >10 kg/m² |
| Installation: 3-minute direct adhesion | Installation: Professional team (1–2 days) |
| Transmittance: 60%–95% | Transmittance: <10% |
| Lifespan: 100,000 hours | Lifespan: 80,000 hours |
The data shows that LED crystal film screens offer superior flexibility, space efficiency, and cost savings over time, thanks to lower installation and maintenance costs.
How to Choose the Right LED Crystal Film Screen Model
Follow these steps to select the perfect model from our P4/P6/P8/P10 series for your project:
1.Determine Viewing Distance: Choose P4 for 2–4m, P6 for 4–6m, P8 for 6–8m, and P10 for >8m viewing distances.
2.Assess Brightness Needs: Our models all have 5000cd/㎡ high brightness, which is suitable for both indoor and outdoor high-light environments.

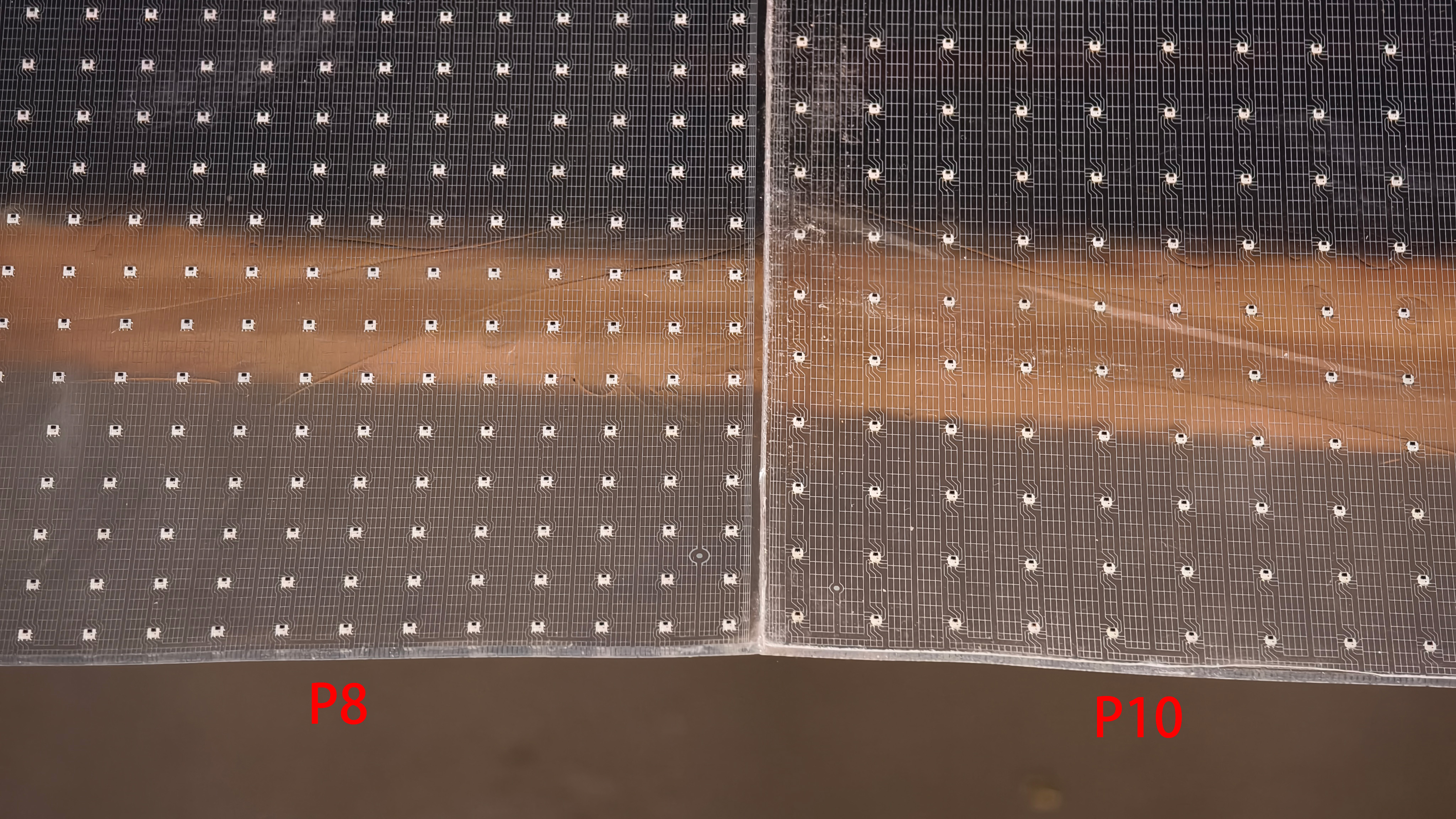

3.Consider Transparency: For glass walls where natural light is critical, opt for P8 (85% transmittance) or P10 (90% transmittance).

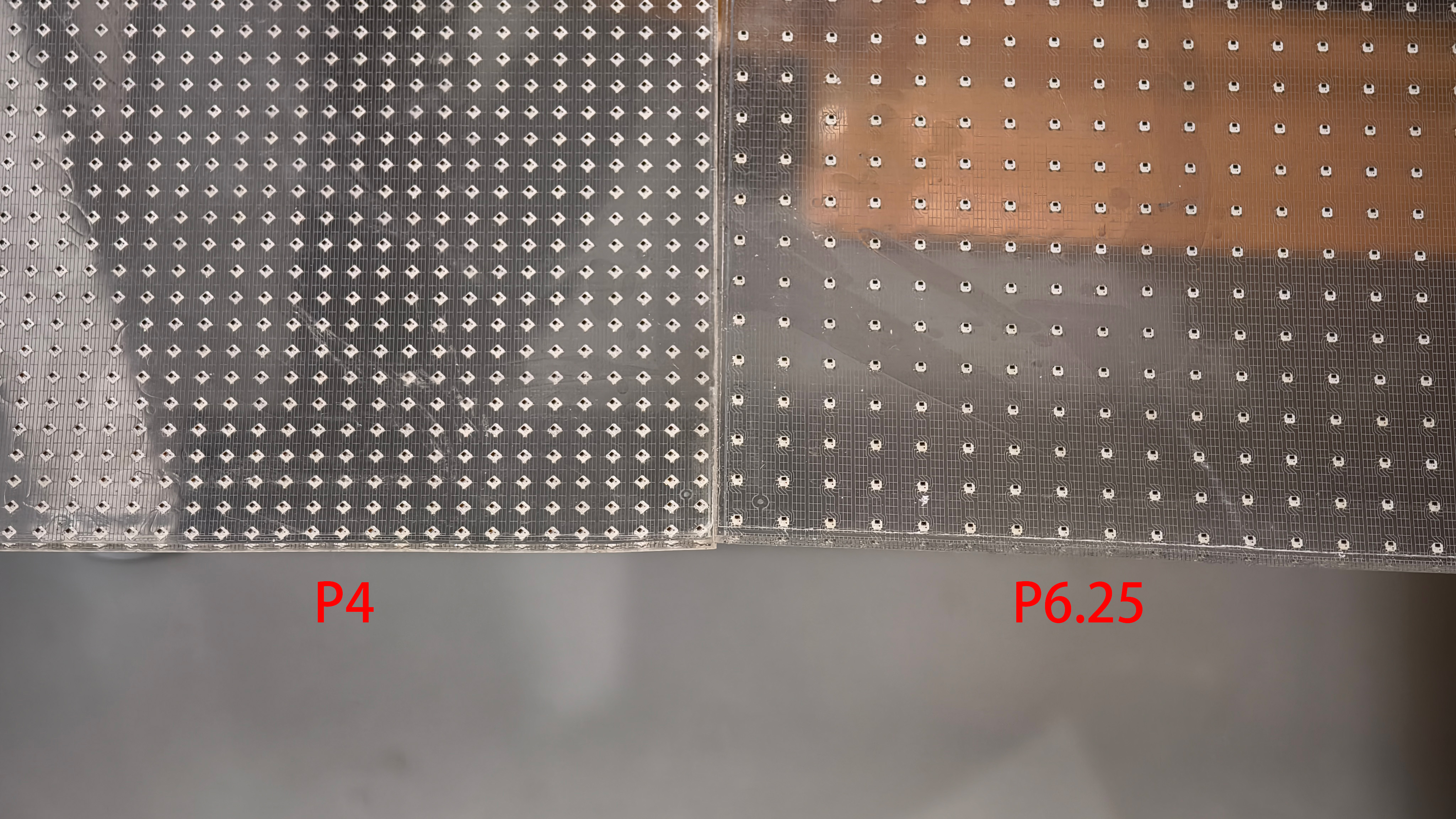

4.Check Pixel Density Requirements: For close-view high-definition scenarios, choose P4/P6; for large-scale displays, P8/P10 are more cost-effective.
Pro Tip: For dynamic environments (e.g., shopping malls), prioritize models with high refresh rates (≥3840 Hz) to avoid motion blur during fast-paced content playback.
Future Trends in LED Crystal Film Screens
Looking ahead to the future of LED crystal film screens, we will focus on three core development directions to better meet market demands. First, intelligent interaction integration: We will embed multi-touch sensing technology and voice control modules into our P4/P6/P8/P10 series, enabling users to interact with the screen through gestures or voice commands—this is particularly suitable for educational scenarios, retail interactive showcases, and smart office spaces. Second, green energy-saving upgrades: By optimizing the drive circuit and adopting low-power LED chips, we aim to reduce the power consumption of our models by another 20% while maintaining the 5000cd/㎡ high brightness, making them more in line with global energy-saving and environmental protection standards. Third, scenario-specific customization deepening: We will launch industry-specific solution packages, such as anti-glare coatings for outdoor advertising models (P8/P10) to enhance visibility in strong sunlight, and anti-reflective films for museum models (P6/P8) to avoid interfering with the viewing of physical exhibits. These upgrades will make our LED crystal film screens more versatile and competitive in diverse application fields.
Conclusion
Our LED crystal film screens represent the future of digital displays, offering unmatched flexibility, transparency, and performance. Whether you’re upgrading a retail window, designing a museum exhibit, or creating a large-scale advertising installation, our 2025 P4/P6/P8/P10 models provide tailored solutions for every need. By understanding your viewing distance, brightness requirements, and installation constraints, you can select the perfect model to elevate your visual communication and stand out in a crowded market.
Ready to explore your options? Contact us for custom quotes and technical support to bring your vision to life with our LED crystal film screens.
