A Guide to the Differences Between Various Pixel Pitches of LED Fine-Pitch Screens
2026-02-28
In the field of high-end indoor displays, LED fine-pitch screens have become essential display equipment for conference rooms, exhibition halls, command centers, and data visualization centers. One of the most important parameters during selection is the pixel pitch. LED fine-pitch screens with different pixel pitches vary significantly in display effect, viewing distance, cost, and application scenarios.
1. What is the "Pixel Pitch" of an LED Fine-Pitch Screen?

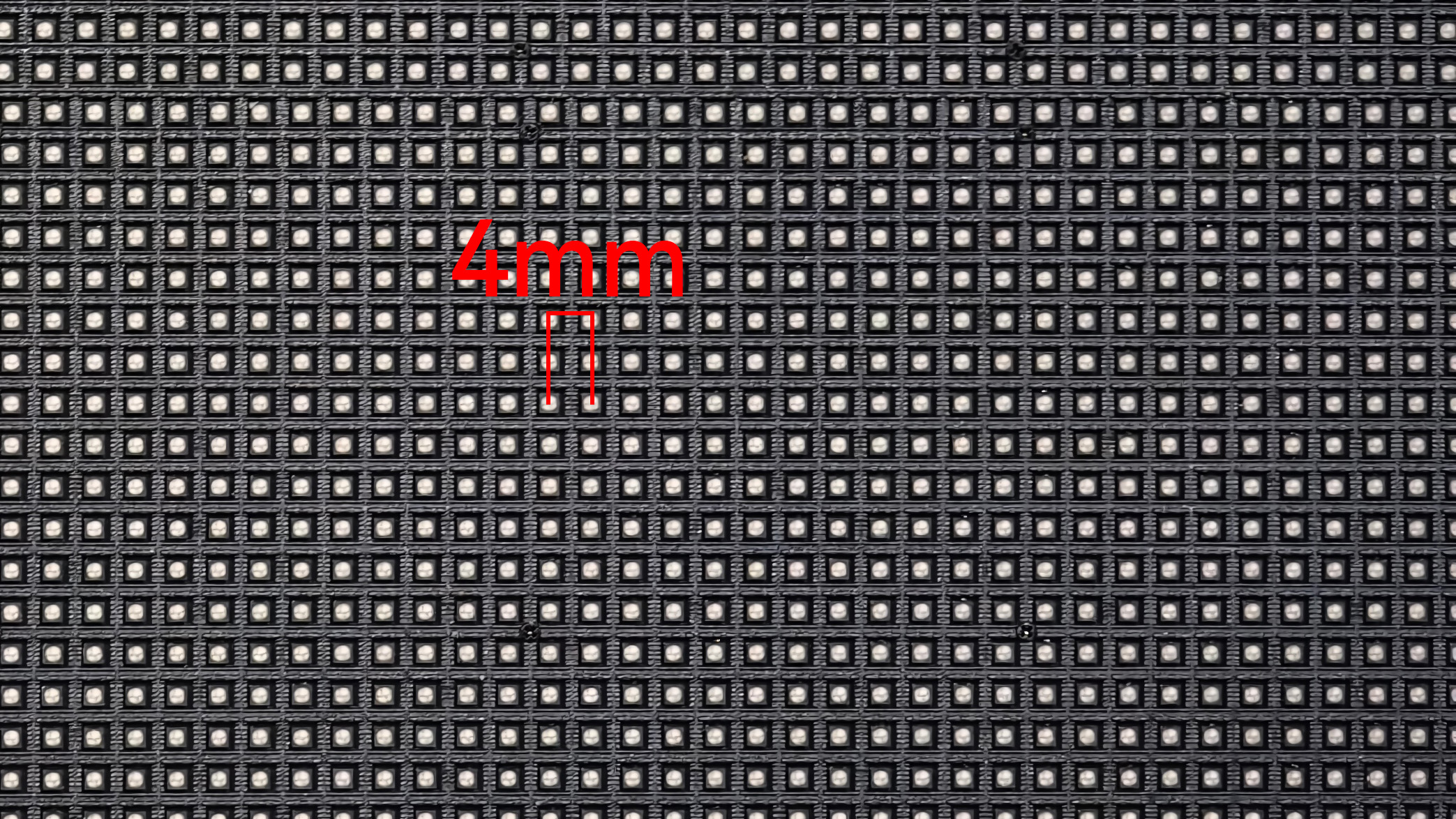

The pixel pitch of an LED fine-pitch screen refers to the distance between the centers of two adjacent LED lamps, usually measured in millimeters (mm). For example:
- P1.2 means a pixel pitch of 1.2 mm
- P1.5 means a pixel pitch of 1.5 mm
- P1.8 means a pixel pitch of 1.8 mm
The smaller the value, the denser the LED lamps, the more pixels per unit area, and the higher the resolution.
2. Main Differences Between Different Pixel Pitches
① Display Clarity
The smaller the pixel pitch, the denser the pixels and the finer the image.
- P1.2 LED fine-pitch screen: Suitable for close viewing, with clearer text and detailed performance.
- P1.5 LED fine-pitch screen: Balances clarity and cost, ideal for mid-to-high-end conference rooms.
- P1.8 LED fine-pitch screen: Suitable for longer viewing distances, with higher cost-performance.
In close-range environments, larger-pitch LED fine-pitch screens may cause a grainy effect, while overly small pitches in distant viewing spaces can increase costs without obvious improvement in visual effect.
② Optimal Viewing Distance
A simple rule of thumb: Optimal viewing distance ≈ Pixel pitch (mm) × 1000
For example:
- P1.2 is suitable for viewing at approximately 1.2 meters and above
- P1.5 is suitable for viewing at approximately 1.5 meters and above
- P1.8 is suitable for viewing at approximately 1.8 meters and above
For close-range scenarios such as conference rooms and exhibition halls, P1.2 or P1.5 LED fine-pitch screens are usually preferred.
③ Cost Difference
Smaller pixel pitch requires more LEDs per unit area and higher production technology, therefore: Cost: P1.2 > P1.5 > P1.8
In actual projects, selection should be based on budget and actual viewing distance.
④ Application Scenarios
Different pixel pitches apply to different scenarios:

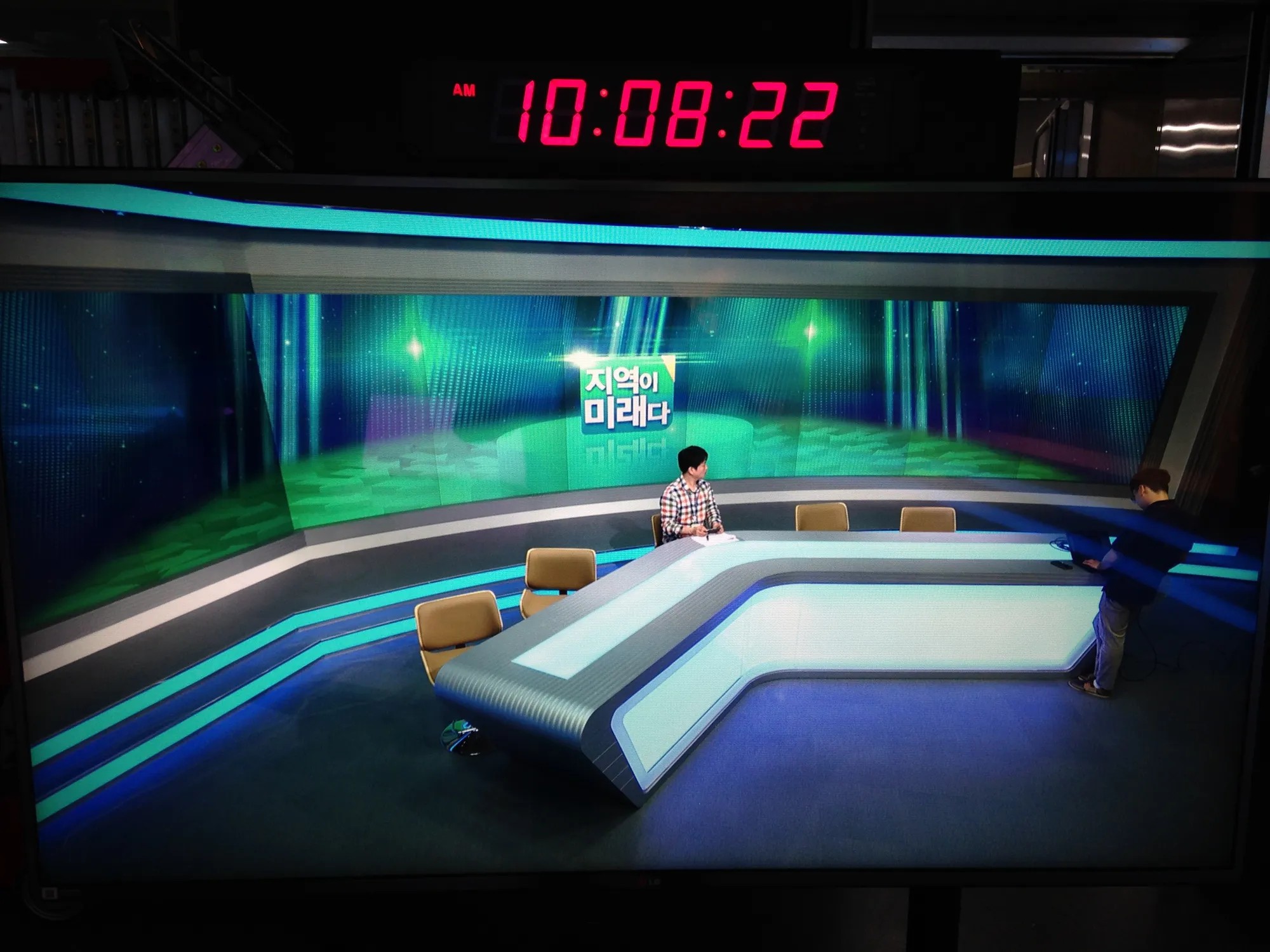

- P1.2 LED fine-pitch screen: High-end conference rooms, broadcast studios, data visualization centers
- P1.5 LED fine-pitch screen: Corporate conference rooms, brand exhibition halls, command centers
- P1.8 LED fine-pitch screen: Medium and large conference spaces, exhibition halls
Reasonable pixel pitch selection ensures display quality while controlling project costs.
3. How to Choose the Right LED Fine-Pitch Screen?
When selecting an LED fine-pitch screen, the following factors are recommended:
- Actual viewing distance
- Space size
- Type of display content (text-based or video-based)
- Project budget
Smaller is not always better; the right match to the application scenario is key.
4. Summary
The core differences of LED fine-pitch screens with different pixel pitches lie in clarity, viewing distance, and cost structure.
- P1.2: Ideal for ultra-close, high-precision displays
- P1.5: Excellent balance between effect and cost
- P1.8: More suitable for medium-distance scenarios
Choosing the right LED fine-pitch screen based on the actual environment ensures ideal display effects and rational project investment.
If you are planning a project for a conference room, exhibition hall, or command center, please contact Lino Visino. We provide professional LED fine-pitch screen selection advice and complete solutions tailored to your needs.
