Aluminum profile outdoor screen

In the field of outdoor LED displays, the cabinet structure is a core factor determining product performance, installation efficiency, and operation and maintenance costs. Traditional die-cast aluminum cabinets have long dominated the market due to their sturdiness and durability. However, as the demand for lightweight and quick installation in large-scale outdoor display projects continues to rise, aluminum profile outdoor LED screenshave stood out with their innovative structural design. As a new generation of outdoor display carriers, aluminum profile Outdoor Led Screens retain high protection performance while achieving a breakthrough in "lightweight, fast, and cost-effective", providing a better solution for complex outdoor scenarios such as ultra-large areas and high-altitude suspension.

Aluminum Profile Outdoor LED Screen: Structural Innovation Empowers Product Advantages

Aluminum profile outdoor LED screens use high-strength industrial aluminum profiles as the main material for the cabinet frame, combined with precision CNC processing technology and modular design, forming unique product competitiveness.

▶ Lightweight Design: Reducing Installation Load Pressure

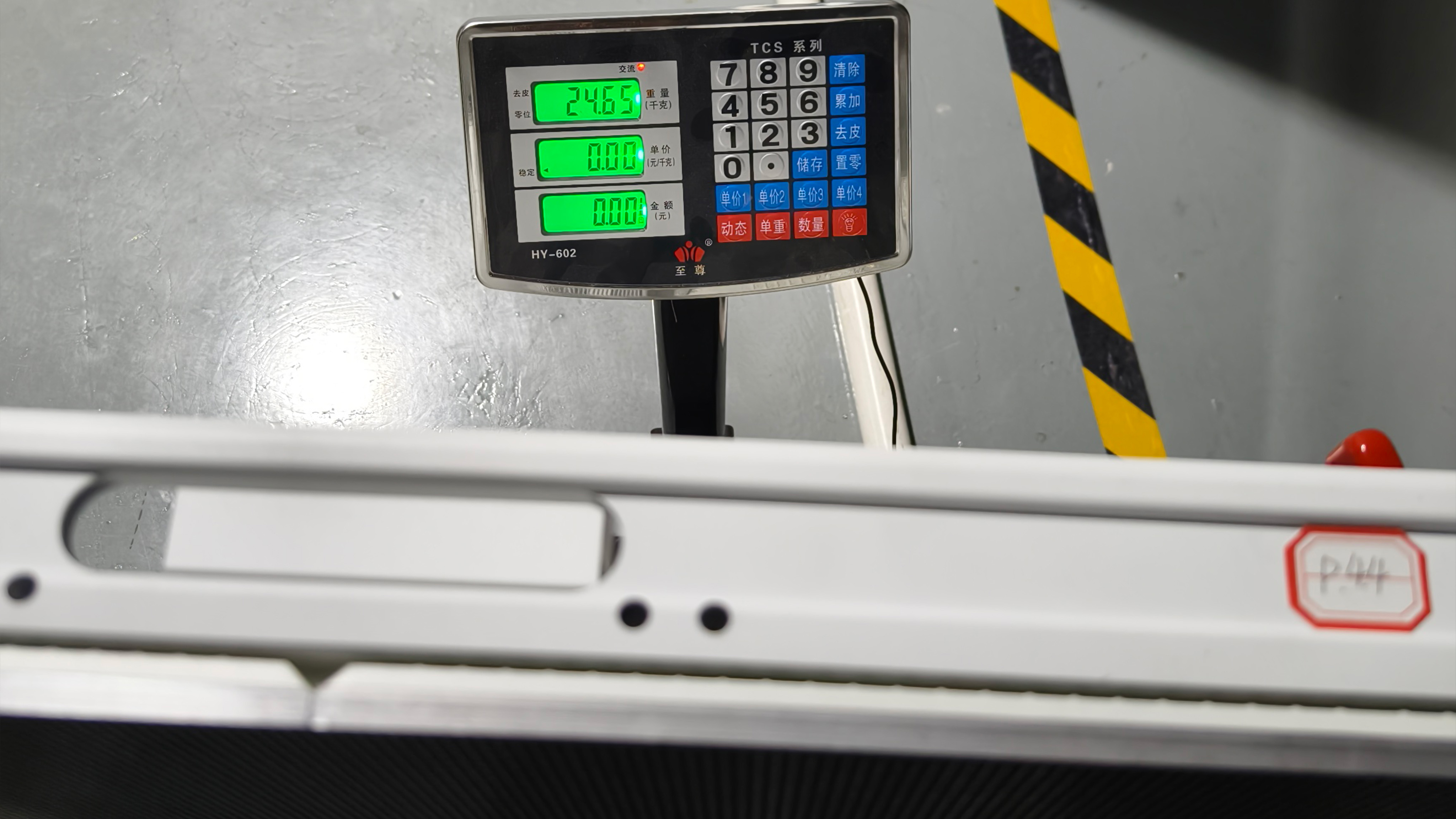

Aluminum profiles themselves have the material characteristics of "high strength and low density". Compared with die-cast aluminum cabinets, under the same protection level, the weight of aluminum profile cabinets can be reduced by 30%-40%. Taking the common 960×960mm cabinet as an example, the weight of a conventional die-cast aluminum cabinet is about 36kg, while the aluminum profile cabinet is only 24.65kg. This lightweight advantage is particularly significant in large-scale outdoor projects. It not only reduces the load-bearing capacity of the steel structure bracket, lowers the project construction cost, but also greatly improves the safety and efficiency of high-altitude installation.

▶ Modular Splicing: Improving Construction Efficiency

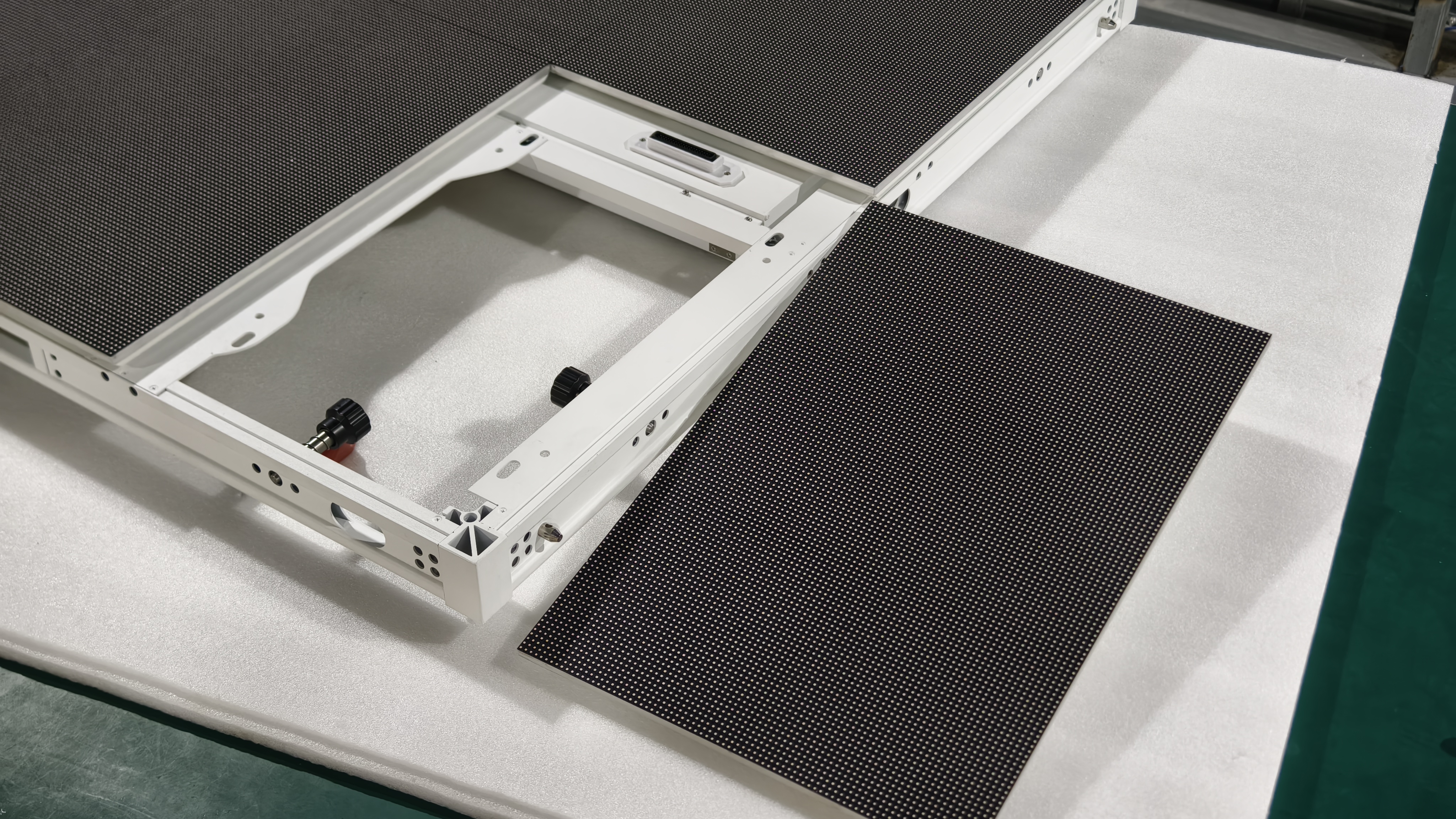

Aluminum profile cabinets adopt a front maintenance hard connection design, which completely solves the pain point of inconvenient maintenance of traditional outdoor screens. Traditional outdoor screens require removing multiple screws at the back of the cabinet to take out the module, which has limited operating space and is time-consuming and labor-intensive; while the aluminum profile screen can complete the quick disassembly and assembly of the module from the front without touching the back structure, and the maintenance time of a single module is shortened to within 5 minutes. At the same time, the aluminum profile cabinet adopts an integrated wiring design, which optimizes the signal, power supply and other lines internally, so the back of the cabinet is clean and tidy as a whole, without additional wire management; in contrast, the traditional outdoor screen has many and messy lines on the back, and the time spent on wire management accounts for more than 30% of the installation time, and it is also prone to faults such as poor contact due to wire entanglement. In addition, the cabinet splicing adopts a standardized positioning pin structure, and the precision is controlled within ±0.1mm, realizing "instant installation and alignment". The installation time of a single cabinet is shortened to 2-3 minutes, which is more than 50% higher than the traditional scheme in construction efficiency. The later maintenance and replacement of a single cabinet also does not require overall disassembly, which greatly reduces the operation and maintenance cost.

▶ Efficient Heat Dissipation: Ensuring Long-Term Stable Operation

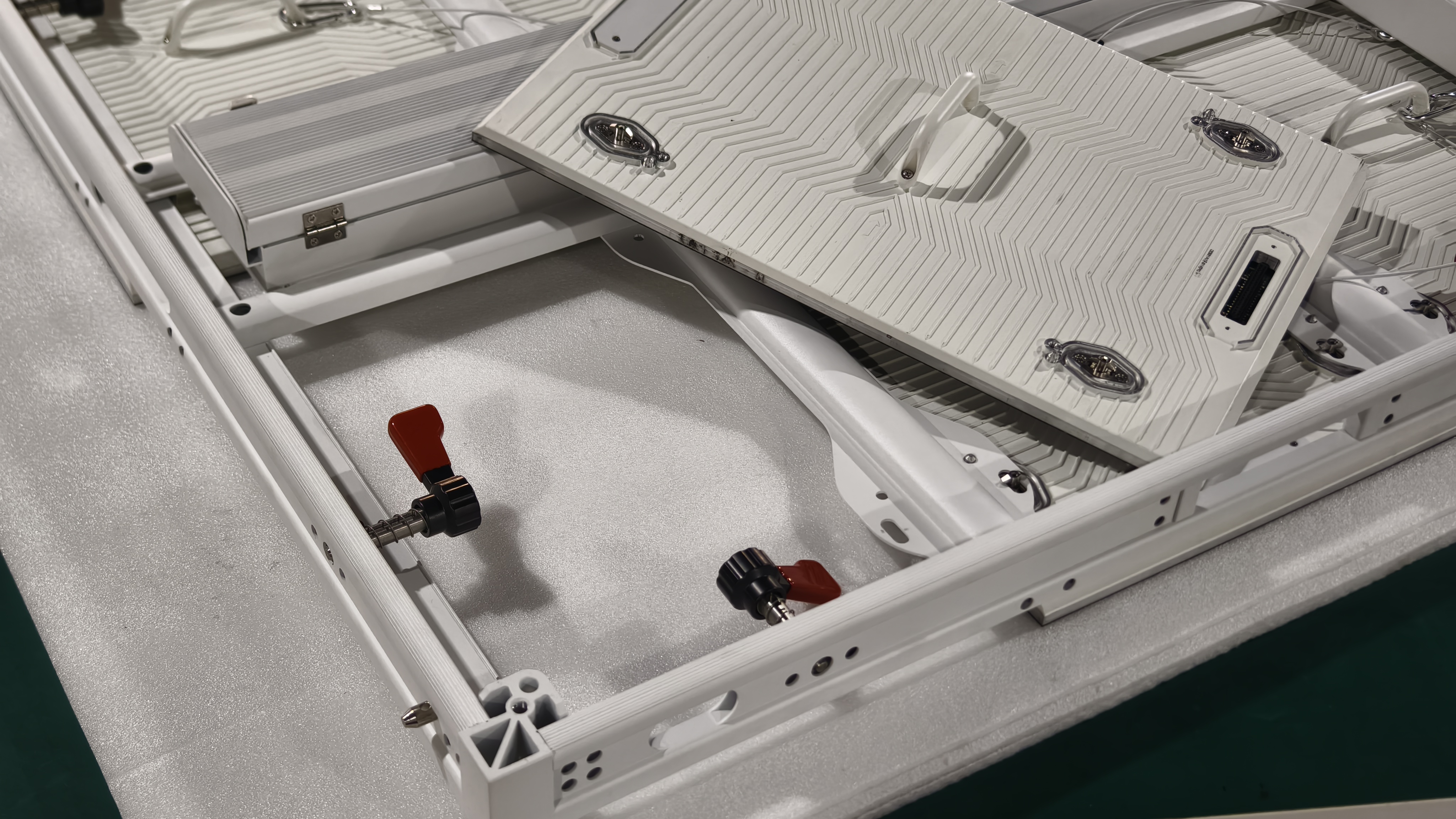

The heat dissipation advantage of aluminum profile cabinets comes not only from the structural design, but also from the excellent thermal conductivity of the material itself. As a typical high thermal conductivity metal material, the thermal conductivity of aluminum alloy can reach 200-237W/(m·K), which is far higher than that of ordinary die-cast aluminum. The product not only uses high-strength aluminum profiles for the cabinet frame, but also selects integrated aluminum alloy material for the back of the module, forming a dual heat conduction system of "cabinet frame + module backplane". Combined with the integrally formed heat dissipation rib structure of the cabinet, the heat dissipation area is further expanded, and together with the natural convection heat dissipation channel formed by the side ventilation hole design, heat can be quickly conducted from the core of the module to the external environment. Actual tests show that when operating at full load in a 45℃ environment, the core temperature of the aluminum profile cabinet is 8-10℃ lower than that of the ordinary die-cast aluminum cabinet, which can effectively avoid brightness attenuation and lamp bead life shortening caused by high temperature, and ensure the long-term stable operation of the product in harsh outdoor environments.

▶ Enhanced Protection: Balancing Protection and Durability

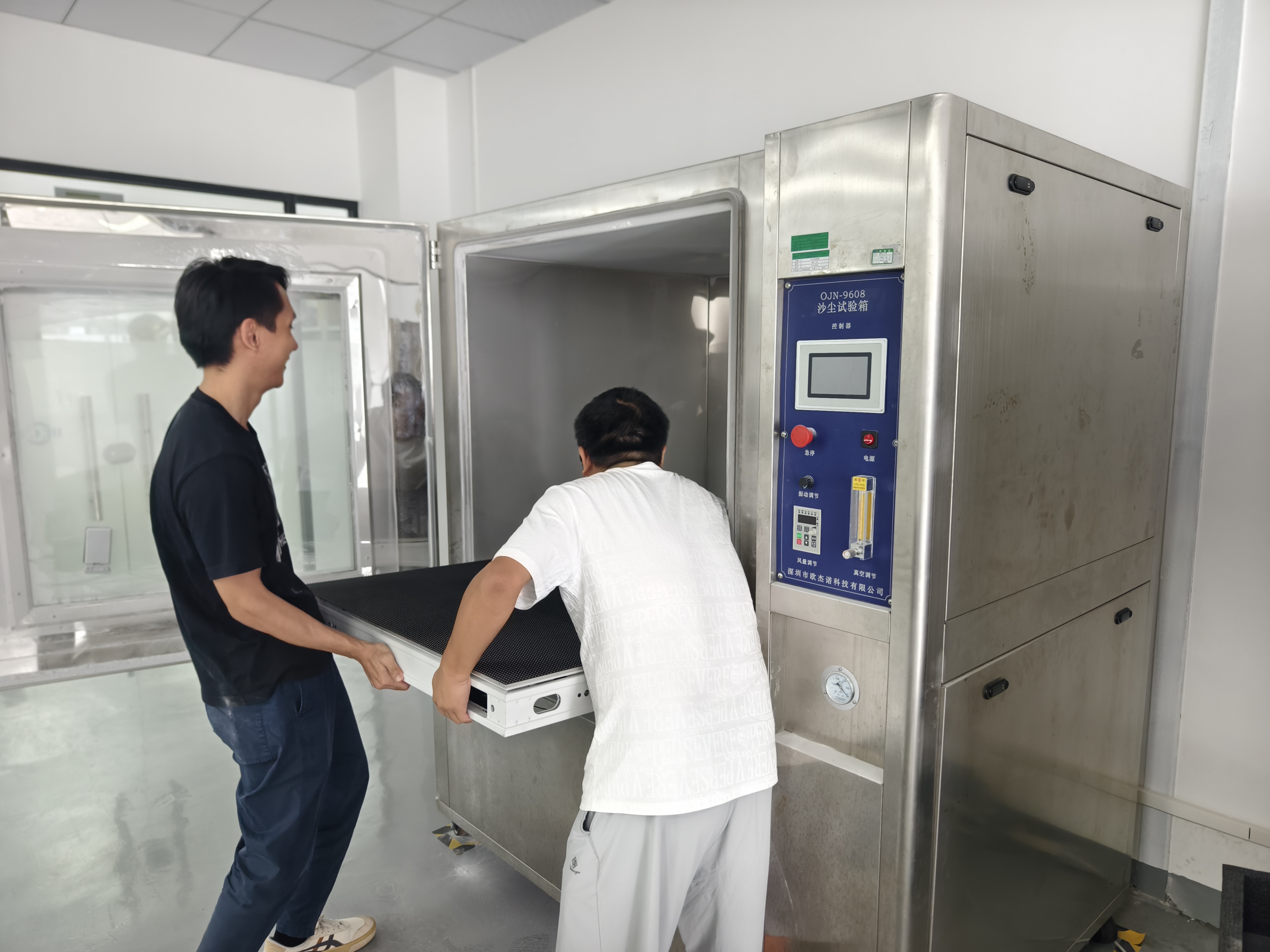

The product's protection design meets the practical needs of outdoor use, and the protection level reaches IP65 standard. By equipping high-performance waterproof rubber strips at the splicing gaps of the cabinet and cooperating with the dust-proof and waterproof structure at the interface, it can effectively block heavy rainscouring and sand dust intrusion, ensuring stable operation in complex outdoor environments. At the same time, the surface of the aluminum profile cabinet is treated with anodization to form a solid corrosion-resistant protective layer. The salt spray test can reach more than 1000 hours, which can adapt to high salt spray and high humidity environments such as coastal areas, further extending the outdoor service life of the product.

Aluminum Profile Outdoor LED Screen vs. Ordinary Die-Cast Aluminum Cabinet: Comparison of Core Dimensions

In terms of core performance and application performance, there are significant differences between aluminum profile outdoor LED screens and ordinary die-cast aluminum cabinets: In terms of cabinet weight, taking the 960×960mm specification as an example, the aluminum profile cabinet is only 24.65kg, which is 30%-40% lighter than the conventional die-cast aluminum cabinet of 36kg; in terms of splicing precision, the aluminum profile screen relies on the mortise and tenon structure and positioning pin design, and the precision is controlled within ±0.1mm, which is much higher than the ±0.3-0.5mm of the ordinary die-cast aluminum cabinet; the construction efficiency gap is obvious, the installation time of a single aluminum profile cabinet only takes 2-3 minutes, which is more than 50% higher than the traditional scheme of 5-8 minutes. In terms of operational stability and durability, heat dissipation effect tests show that the core temperature of the aluminum profile cabinet is ≤70℃ in a 45℃ full-load environment, which is lower than the 78-80℃ of the ordinary die-cast aluminum cabinet; the corrosion resistance is better, the salt spray test can reach more than 1000 hours, far exceeding the 600-800 hours of the ordinary die-cast aluminum cabinet, and the service life is extended by 2-3 years. In terms of applicable scenarios, aluminum profile screens are more suitable for complex needs such as ultra-large area screens, high-altitude suspension, building curtain walls, and temporary events, while ordinary die-cast aluminum cabinets are more suitable for simple outdoor scenarios such as small-area fixed installation and ground display screens; in terms of comprehensive cost, aluminum profile screens reduce installation costs through lightweight and reduce operation and maintenance expenses through long service life, so the overall cost is lower. Ordinary die-cast aluminum cabinets have high installation costs due to their heavy weight, and frequent later maintenance further increases the comprehensive cost.

Typical Application Scenarios: Unleashing the Creative Potential of Outdoor Displays

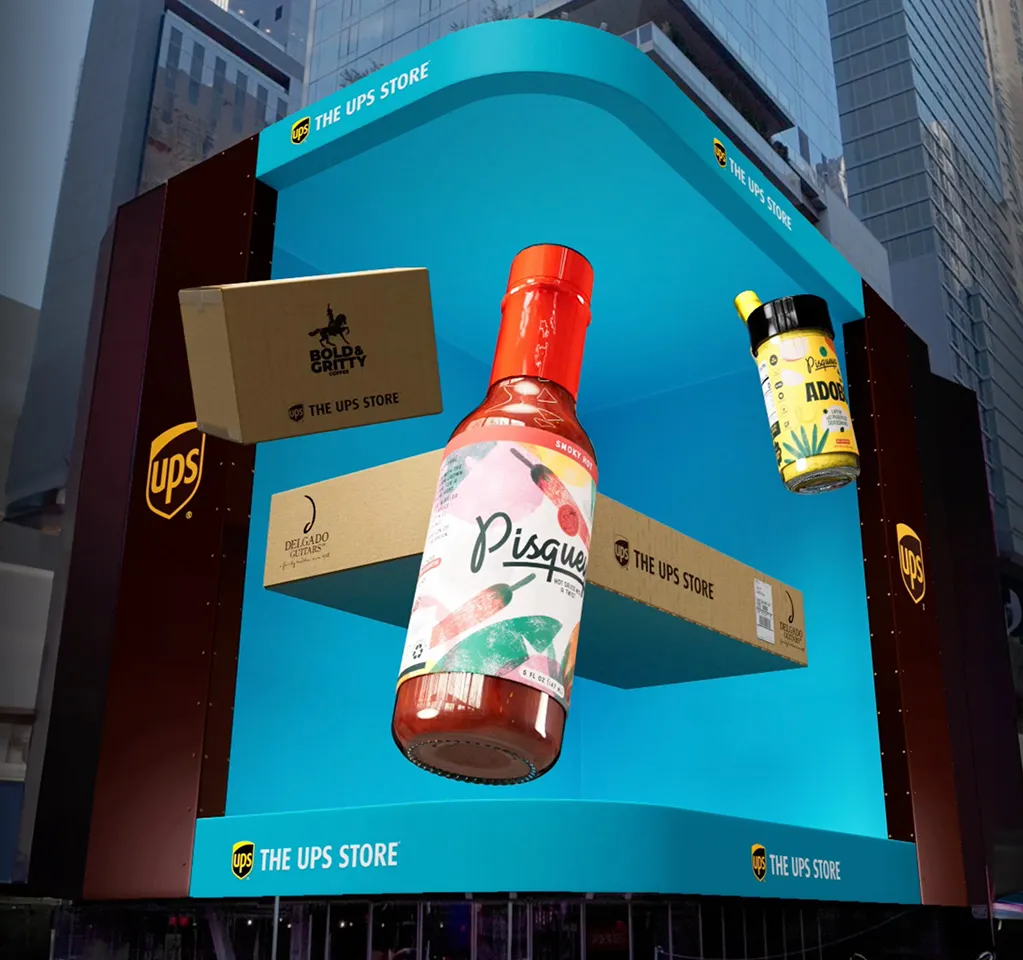

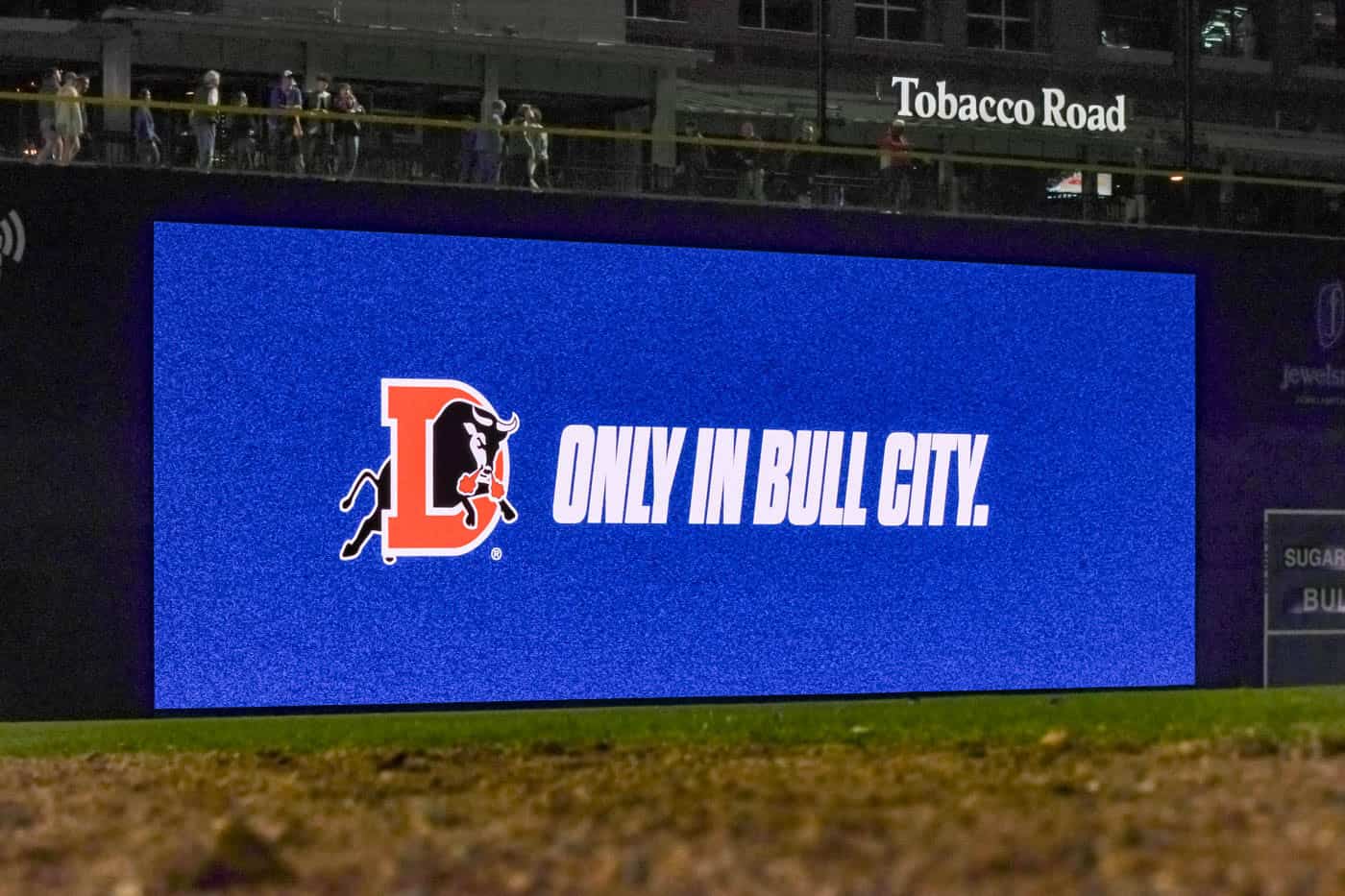

With the advantages of lightweight and high splicing precision, aluminum profile outdoor LED screens have been widely used in various large-scale outdoor projects: In the super high-rise building curtain wall project in the urban CBD, the giant display screen composed of thousands of aluminum profile cabinets greatly reduces the building load-bearing pressure through the lightweight design; in large-scale sports stadiums, the quick splicing feature shortens the overall screen installation cycle to half of the traditional scheme; in temporary outdoor exhibitions and event venues, the modular aluminum profile screen can be quickly built and disassembled to meet the needs of mobile display.

Conclusion: Choose Aluminum Profile Outdoor LED Screen, Choose Efficiency and Reliability

As outdoor display projects develop in the direction of "larger, higher, and more complex", aluminum profile outdoor LED screens, with their core advantages of lightweight, high efficiency, and long service life, are gradually replacing traditional die-cast aluminum cabinets and becoming the new mainstream of the outdoor display market. Whether it is a large-scale project pursuing installation efficiency or a commercial application focusing on long-term operation and maintenance costs, aluminum profile outdoor LED screens can provide a solution that combines performance and economy.

If you need to know more about the technical parameters, project cases or customized solutions of aluminum profile outdoor LED screens, please feel free to contact us, and we will provide you with professional consultation and services.
