Product Description

Product Name:Indoor Fine Pitch LED Display / Indoor Led Video Wall
Available Pixel Pitch: P0.9 / P1.25 / P1.5 / P1.86 / P2 / P2.5 / P3 and customized options
LED Technology: COB / GOB / SMD
Installation: Wall-mounted / Embedded / Front Maintenance / Curved / Customized
Applications: Conference Rooms, Control Rooms, Corporate Showrooms, Retail Stores, Shopping Malls, Museums, Hotels, Exhibition Halls, Broadcast Studios and Education Centers

Main Features

• Seamless large-format display
• Fine pixel pitch for close-distance viewing
• High contrast and vivid color reproduction
• High refresh rate for smooth video playback
• Wide viewing angle
• Front maintenance options
• Flexible screen size and aspect ratio
• 16:9 / 4K / customized resolution configurations
• Suitable for long-term commercial operation
• OEM/ODM and customized Led Display Solutions

Suggested Image:
A premium modern corporate conference room with a huge seamless indoor fine-pitch led video wall, realistic architecture, executives viewing presentation content, strong visual depth, premium commercial photography style.

What Is an Indoor Led Display?

An Indoor Led Displayis a modular direct-view display system made from multiple led modules or cabinets that work together as one large seamless digital canvas.

Unlike conventional televisions or LCD video walls, an LED display does not require visible bezels between panels. This allows businesses to build extremely large screens while maintaining a continuous image.

Indoor Led Screens are now widely used for:

• Corporate presentations
• Video conferencing
• Command and control centers
• Retail advertising
• Brand showrooms
• Exhibition halls
• Museums
• Broadcast studios
• Hotels
• Education
• Entertainment venues

As digital communication becomes increasingly important, the led wall is changing from a simple display device into a major part of modern interior architecture.

Why Are Indoor LED Displays Becoming More Popular in 2026?

The demand for indoor LED video walls continues to grow because commercial spaces need larger, clearer and more flexible digital displays.

A modern meeting room may need to display several video conference participants, presentations, spreadsheets and live data simultaneously.

A retail store may need to change advertising content every hour.

A command center may require continuous real-time monitoring.

An exhibition hall may need a screen that becomes part of an immersive environment.

These requirements are difficult to satisfy with traditional static displays.

Indoor LED technology makes it possible to create a digital wall in almost any size or shape while maintaining a seamless visual surface.

Create a visual showing several indoor LED applications:

Conference Room | Retail Store | Control Room | Exhibition Hall

Do not make it look like a cheap collage. Use a premium architectural presentation layout with four clearly differentiated commercial environments.

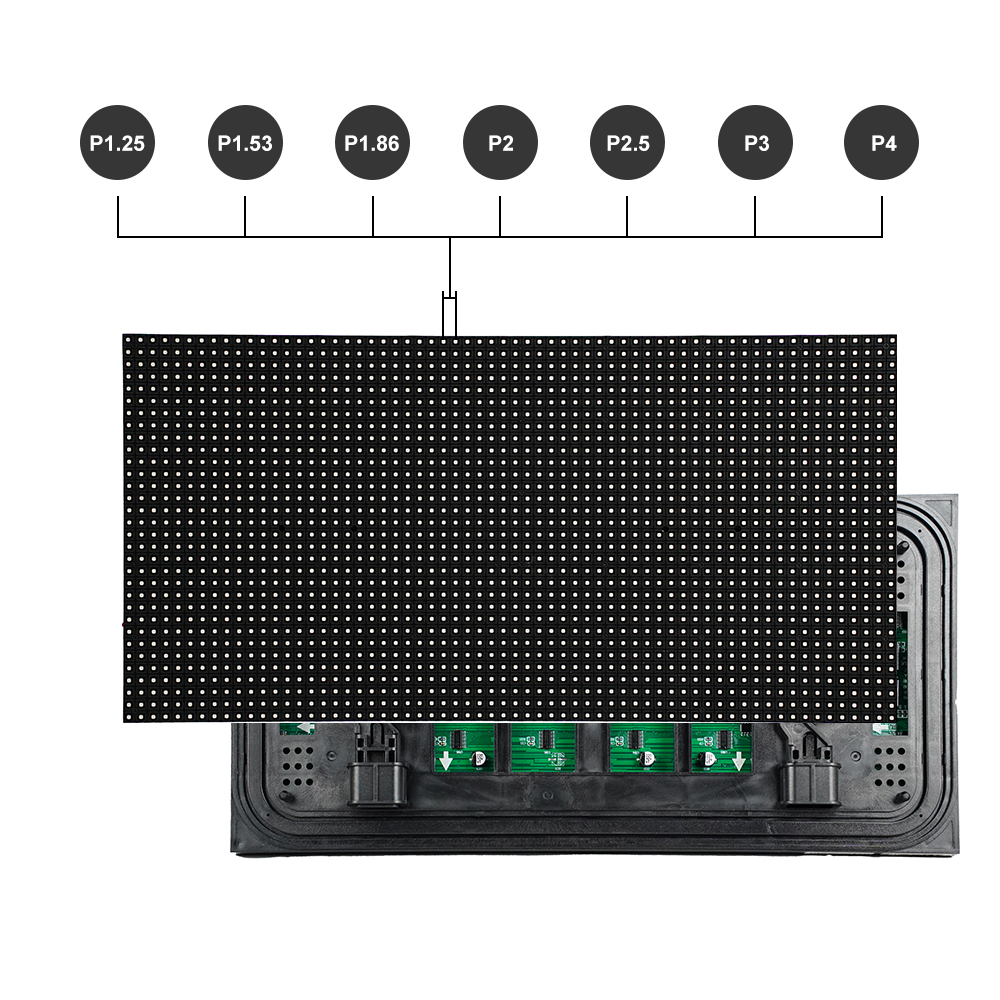

How to Choose the Right Pixel Pitch

Pixel pitch is one of the most important specifications when choosing an indoor LED screen.

Pixel pitch refers to the distance between neighboring pixels and is measured in millimeters.

For example:

P1.5 = approximately 1.5 mm between pixels

A smaller pixel pitch normally provides higher pixel density and allows viewers to see finer image details from a shorter distance.

However, smaller is not always better.

The correct choice depends on:

Viewing distance + screen size + resolution requirement + content + budget.

Indoor LED Pixel Pitch Comparison

Pixel Pitch	Typical Application	Recommended Viewing Situation
P0.9–P1.2	Executive boardrooms, broadcast, control centers	Very close viewing
P1.25–P1.5	Conference rooms, showrooms, command centers	Close viewing
P1.86–P2	Corporate halls, retail, museums	Close to medium viewing
P2.5	Exhibition halls, hotels, commercial spaces	Medium viewing
P3	Large halls, stages, large indoor advertising	Longer viewing distance

A practical starting point is:

Smaller viewing distance → smaller pixel pitch.

But buyers should avoid choosing an unnecessarily small pitch simply because the specification looks better.

For example, when an audience is several meters away from a very large screen, reducing the pixel pitch may significantly increase the project cost without creating an equally noticeable improvement for the viewer.

Title Inside Image:

How to Choose Indoor LED Pixel Pitch

Visualize:

P0.9 → P1.2 → P1.5 → P1.86 → P2 → P2.5 → P3

Show a viewer gradually moving farther away from the LED wall.

Keep the design professional and technical rather than colorful or cartoon-like.

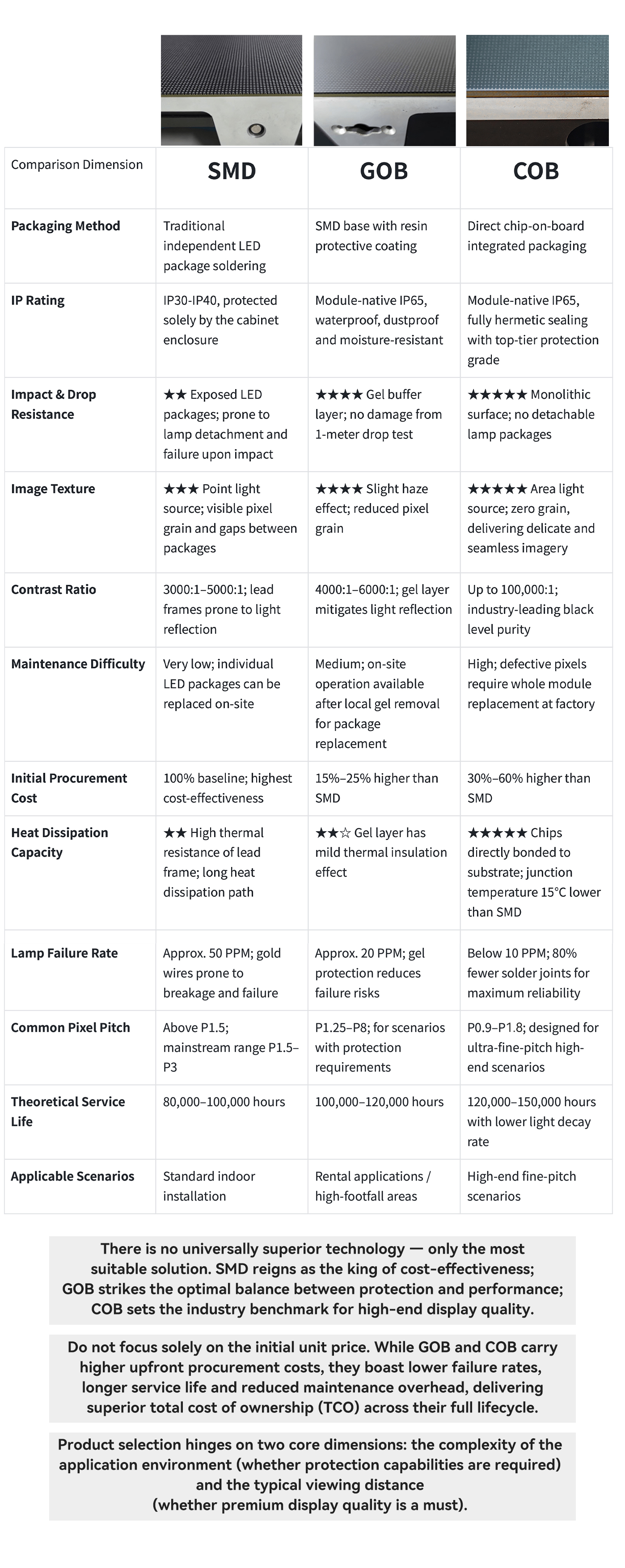

COB vs SMD vs GOB: Which Indoor LED Technology Is Better?

This has become one of the most important questions for indoor LED display buyers.

SMD LED Display

SMD has been widely used in the LED display industry for many years.

Individual LED packages are mounted onto the module PCB, making SMD a mature and flexible solution for many commercial indoor projects.

It remains attractive for projects that require good performance while maintaining competitive project costs.

Suitable For

Conference rooms, exhibition halls, retail environments, stages and general commercial displays.

COB LED Display

COB stands for Chip on Board.

Instead of using traditional individual SMD packages, multiple LED chips are integrated more directly into the display module and protected by the display surface.

COB technology has become especially important in ultra-fine-pitch indoor displays.

Its protected surface makes the LED module more resistant to accidental contact while also supporting extremely fine pixel pitch configurations.

Suitable For

High-end conference rooms, executive spaces, command centers, broadcast studios, premium retail and close-viewing environments.

GOB LED Display

GOB stands for Glue on Board.

A protective layer is applied over a conventional LED module to provide additional protection for the LEDs.

It can offer a useful balance between traditional SMD construction and enhanced surface durability.

7 Specifications You Should Compare Before Buying an Indoor LED Screen

Pixel pitch receives the most attention, but professional buyers should evaluate the entire LED system.

1. Resolution

Resolution depends on both screen dimensions and pixel pitch.

If your project must display detailed spreadsheets, dashboards, text or 4K content, calculate the final physical resolution before ordering the LED wall.

2. Brightness

Indoor displays generally do not need the extremely high brightness required for outdoor billboards.

More important is finding a comfortable brightness level that works with the ambient lighting of the room.

3. Contrast

Strong contrast helps produce deeper blacks and stronger visual depth.

This is especially important for premium conference rooms, studios, showrooms and environments displaying dark cinematic content.

4. Refresh Rate

Refresh rate becomes particularly important when the LED screen will appear on camera.

Conference broadcasting, live streaming, television studios and virtual production environments benefit from high-refresh LED display systems.

5. Color Uniformity

A large LED video wall may contain many modules and cabinets.

Professional calibration helps ensure that the entire screen maintains consistent brightness and color.

6. Maintenance Method

For wall-mounted installations with limited rear access, front maintenance can dramatically simplify future servicing.

Modules, receiving cards and other components can be accessed from the front without dismantling the entire wall structure.

7. Reliability

For command centers, broadcast studios and other mission-critical applications, system stability can be more important than achieving the lowest possible purchase price.

Power supply, receiving cards, heat management, cabinet structure and spare parts should all be considered during project design.
