As LED display technology evolves from flat to flexible, outdoor creative displays have ushered in unprecedented opportunities and challenges. According to industry data, the global market size of outdoor LED flexible displays grew by 32% year-on-year in 2024. However, environmental erosion and installation safety remain two major pain points restricting the industry's development - nearly 58% of outdoor flexible module failures stem from rainwater leakage, and 37% of installation accidents are directly related to the lack of protective measures. To address these industry challenges, we launch the new generation LED outdoor flexible module, redefining the safety standard for outdoor irregular-shaped displays with the innovative design of "flexible creativity + six-fold safety protection".

Six-Fold Protection System: Equipping Flexible Displays with "Safety Armor"

Traditional outdoor flexible modules often compromise on protective performance in pursuit of flexibility, while our product achieves a perfect balance between "flexibility and rigidity" through structural innovation.

▶ Three-Dimensional Waterproofing: Full-Link Design from Prevention to Diversion

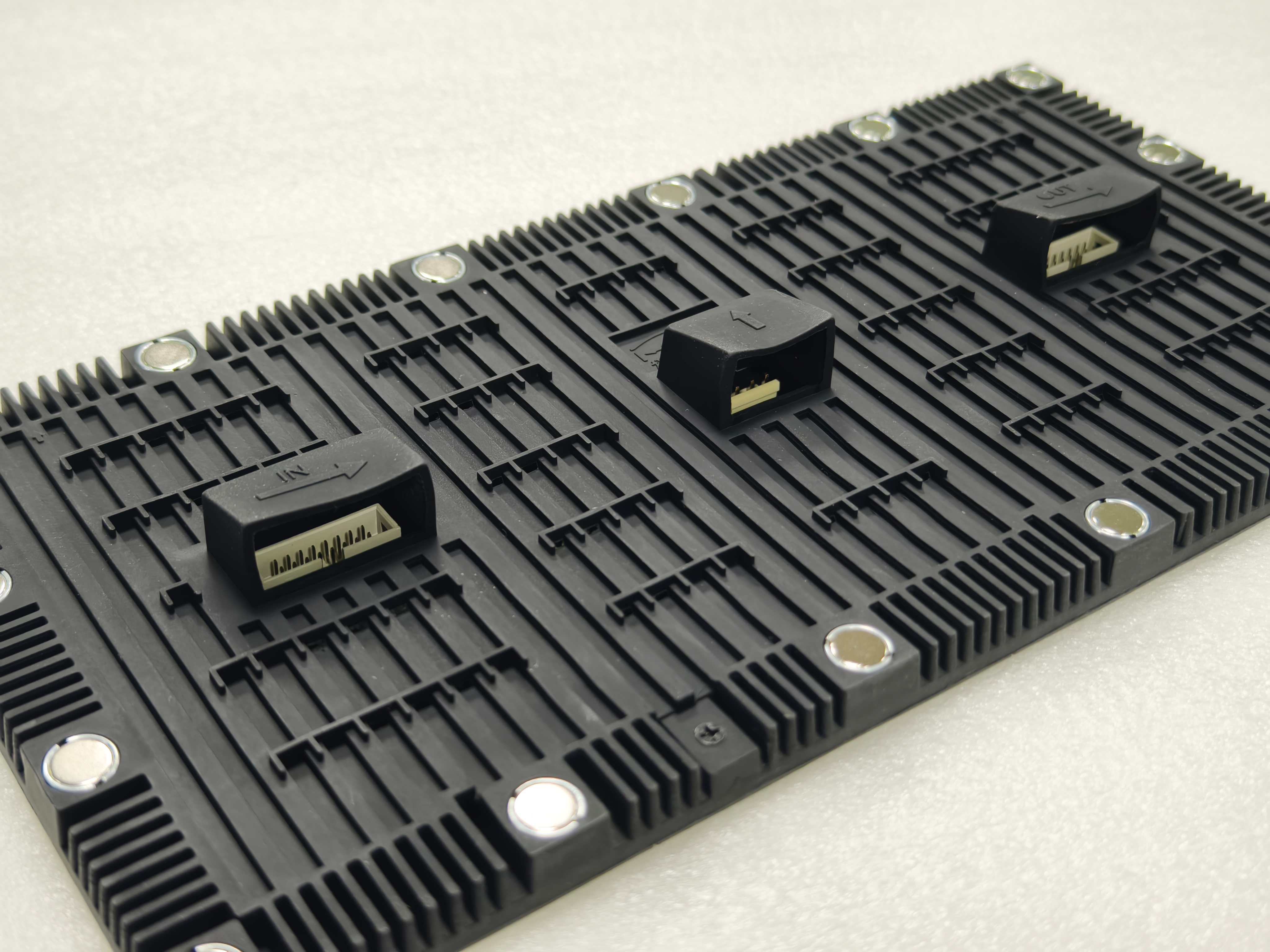

Different from the single sealing of conventional products, we have built a three-level waterproof system of "prevention-blocking-diversion". The back of the module adopts a fully sealed process, combined with silicone edge wrapping, forming the first waterproof barrier; the plug interface is innovatively designed with a brimmed protective cover, which can effectively guide rainwater to flow down and avoid infiltration along the interface gap; even in extreme cases where a small amount of water enters, the pre-set drainage holes at the bottom can quickly drain the accumulated water, fundamentally eliminating the risk of short circuit. After actual measurement, the waterproof system operates continuously for 72 hours without any leakage in a simulated heavy rain environment, and the protection effect is far beyond the industry average.

▶ Efficient Heat Dissipation: A Breakthrough in Thermal Management in Flexible Structures

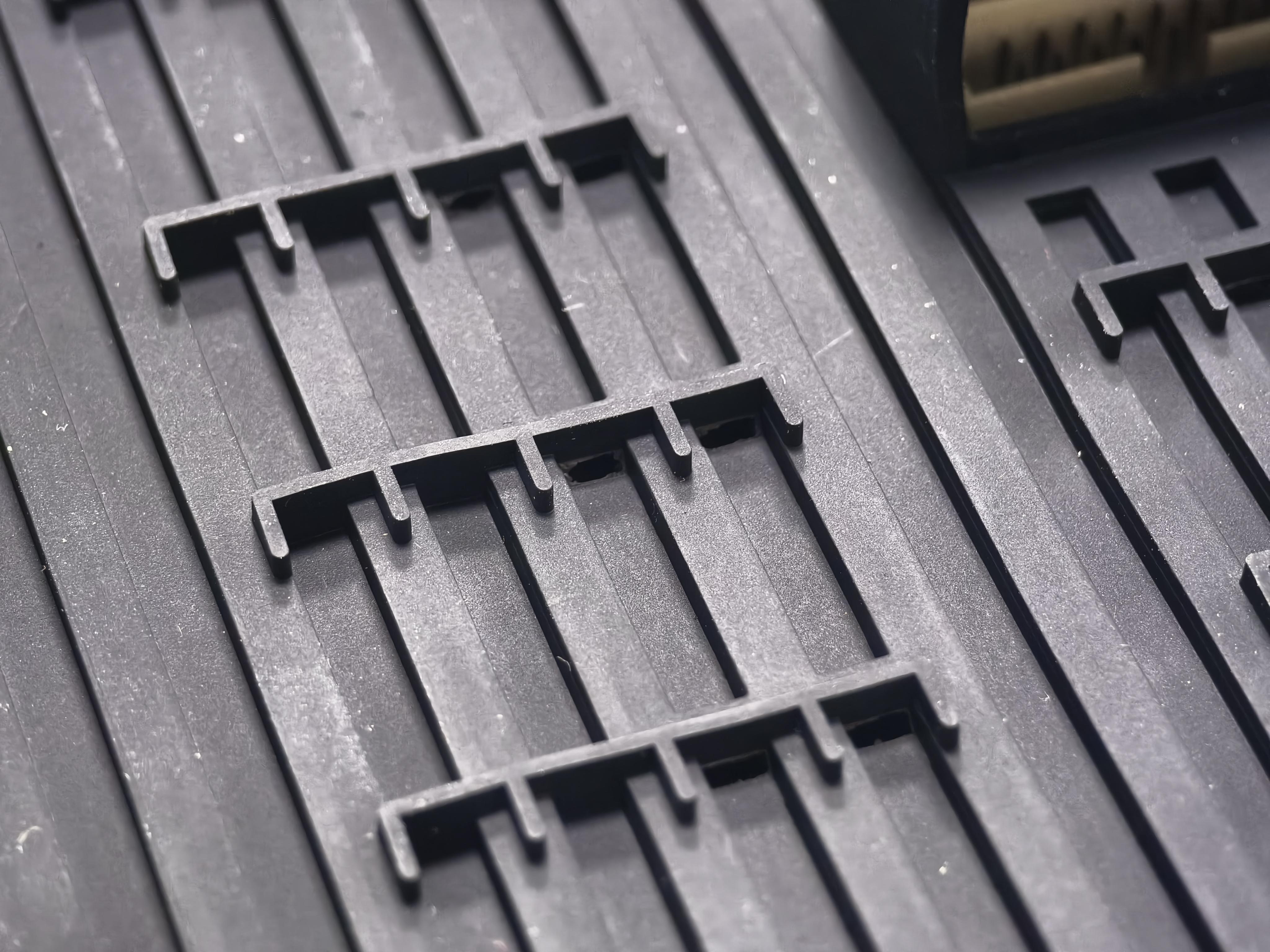

Heat dissipation is another major technical bottleneck for outdoor flexible modules. We adopt a combined scheme of "widened heat dissipation strips + directional heat dissipation holes": the width of the back heat dissipation strip is increased to 3mm, which expands the heat dissipation area by 40% compared with ordinary products. Combined with the strip arrangement design, the heat conduction efficiency is increased by 35%; the heat dissipation holes are cleverly opened in the grooves of the back heat dissipation strips, which not only does not affect the flexible bending of the module, but also allows heat to be directed out along the grooves. Moreover, each heat dissipation hole is equipped with a brimmed waterproof structure above, which can directly block the vertical dripping of rainwater, ensuring heat dissipation efficiency while completely blocking the rainwater intrusion path. Actual tests show that when operating at full load in a 45℃ environment, the core temperature of the module is controlled within 68℃, which is 12℃ lower than similar products, effectively extending the life of LED lamp beads to more than 100,000 hours.

▶ Installation Safety: Life Protection in Details

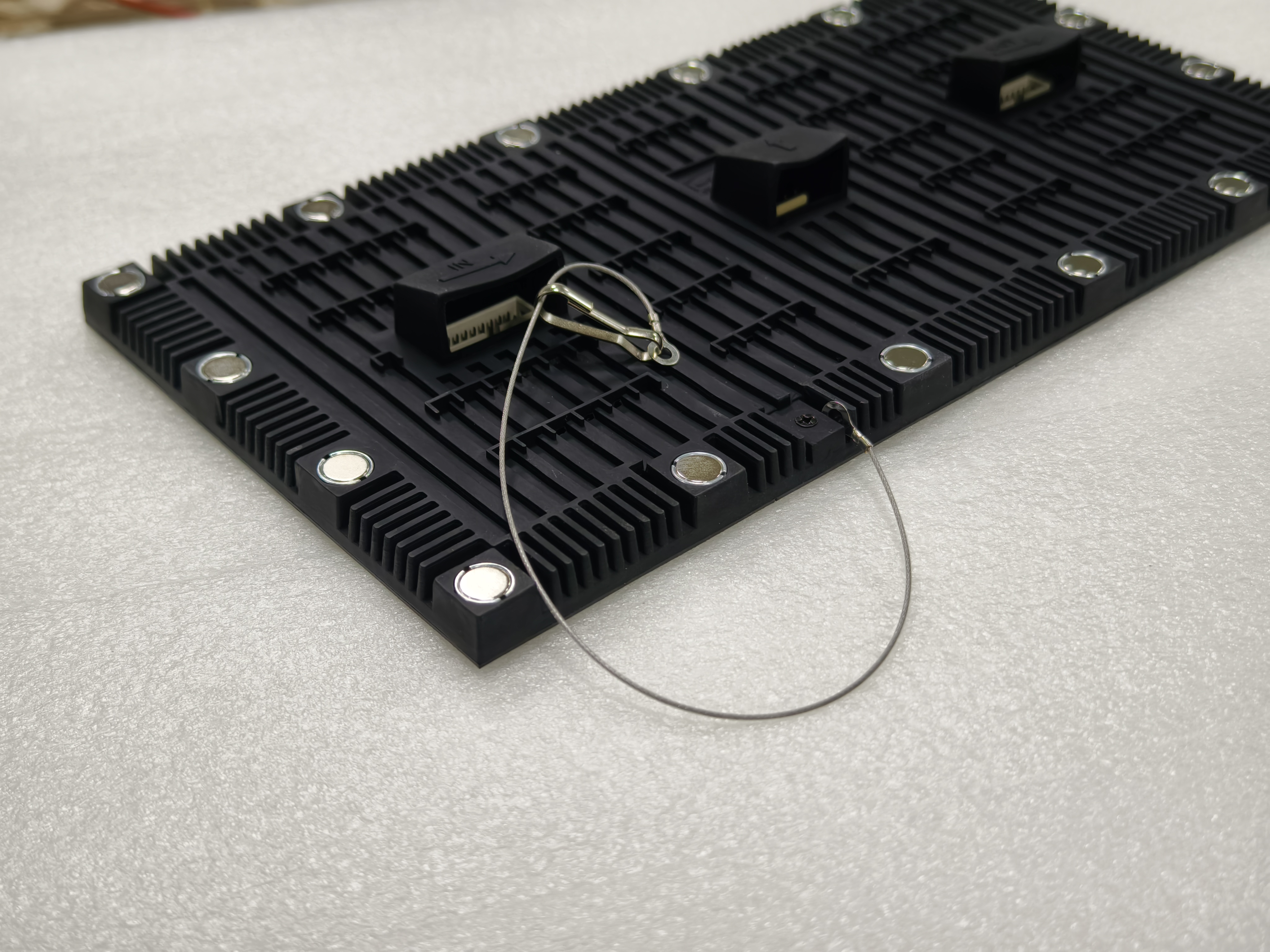

In response to the risk of outdoor high-altitude installation, the side of the module is specially designed with safety rope installation holes. When used with high-strength safety ropes, it can bear the tension of 5 times the weight of the module. During installation and disassembly, even if an accidental fall occurs, the safety rope can support it in time to avoid falling accidents. This design has passed the certification of the National Work Safety Testing Center, providing double protection for the safety of construction personnel and pedestrians.

Undiminished Flexibility: Combining Creative Forms with Stable Performance

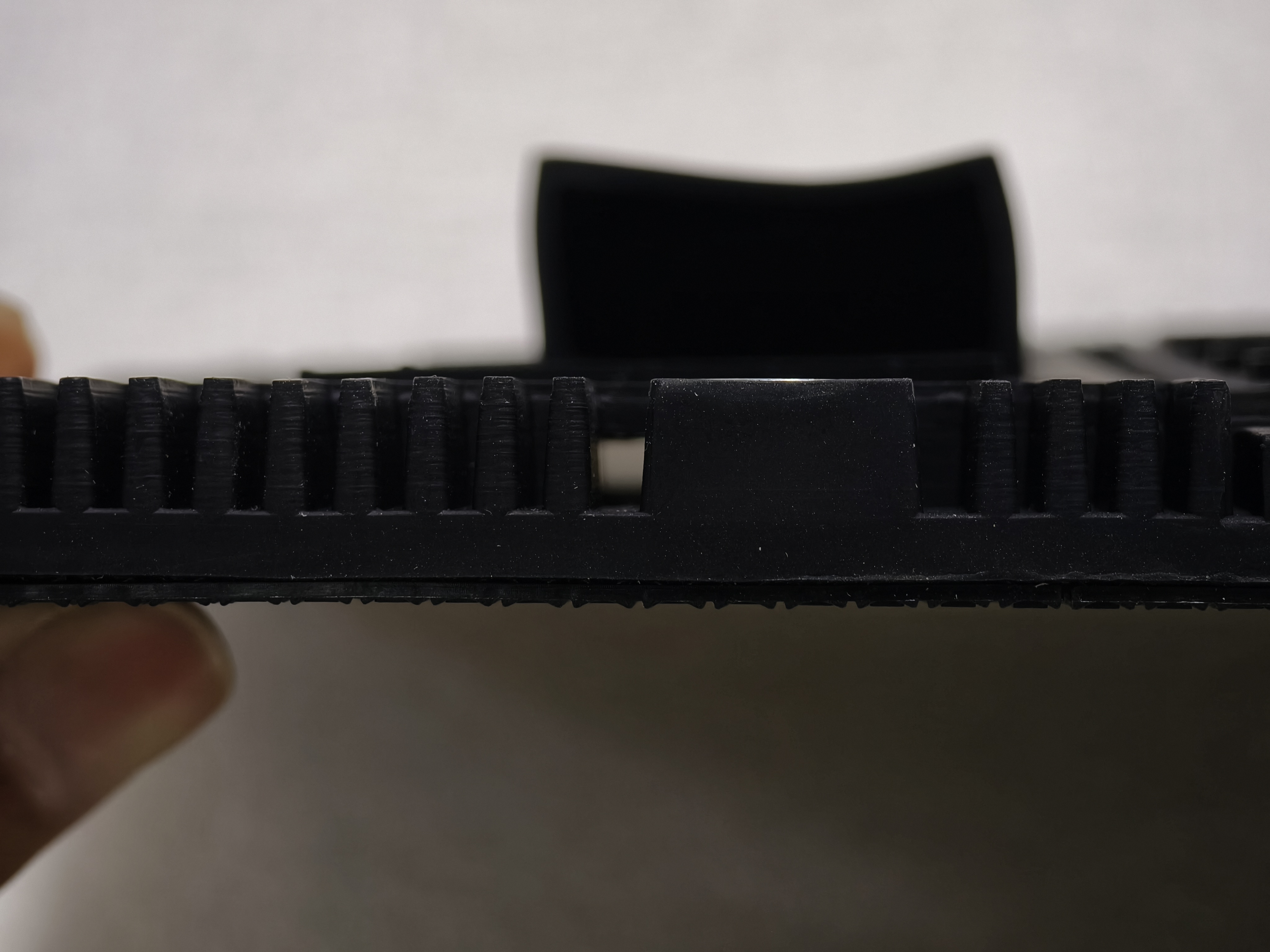

While strengthening protection, we have not sacrificed the core advantages of flexible modules. The product supports a 120° safe bending angle, which can easily shape irregular shapes such as cylindrical screens, wave screens, and ribbon screens, perfectly adapting to complex scenarios such as building curtain walls, stadium domes, and commercial complex corridors. Its lightweight design is also excellent, reducing weight by 18% compared with similar products on the market, greatly reducing the installation load pressure, and is particularly suitable for large-span suspended installation requirements.

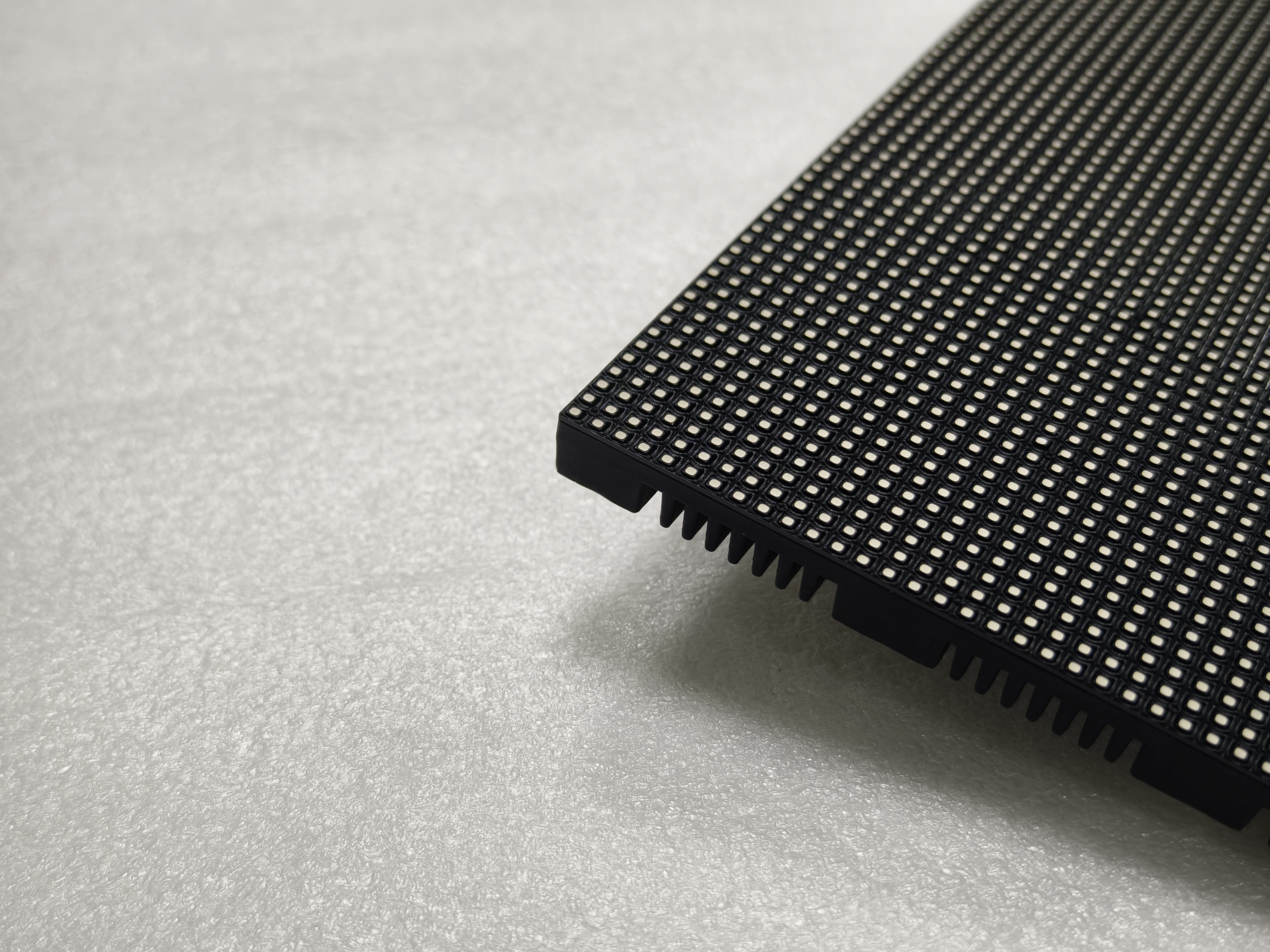

In terms of display performance, the module adopts high-brightness lamp beads, combined with a 120° ultra-wide viewing angle, which can present clear and delicate images even in strong light environments; the 3840Hz high refresh rate ensures no trailing of dynamic images, meeting the high-quality display needs of outdoor advertising, event live broadcasts, etc.

Scenario Empowerment: Infinite Possibilities from Business to Art

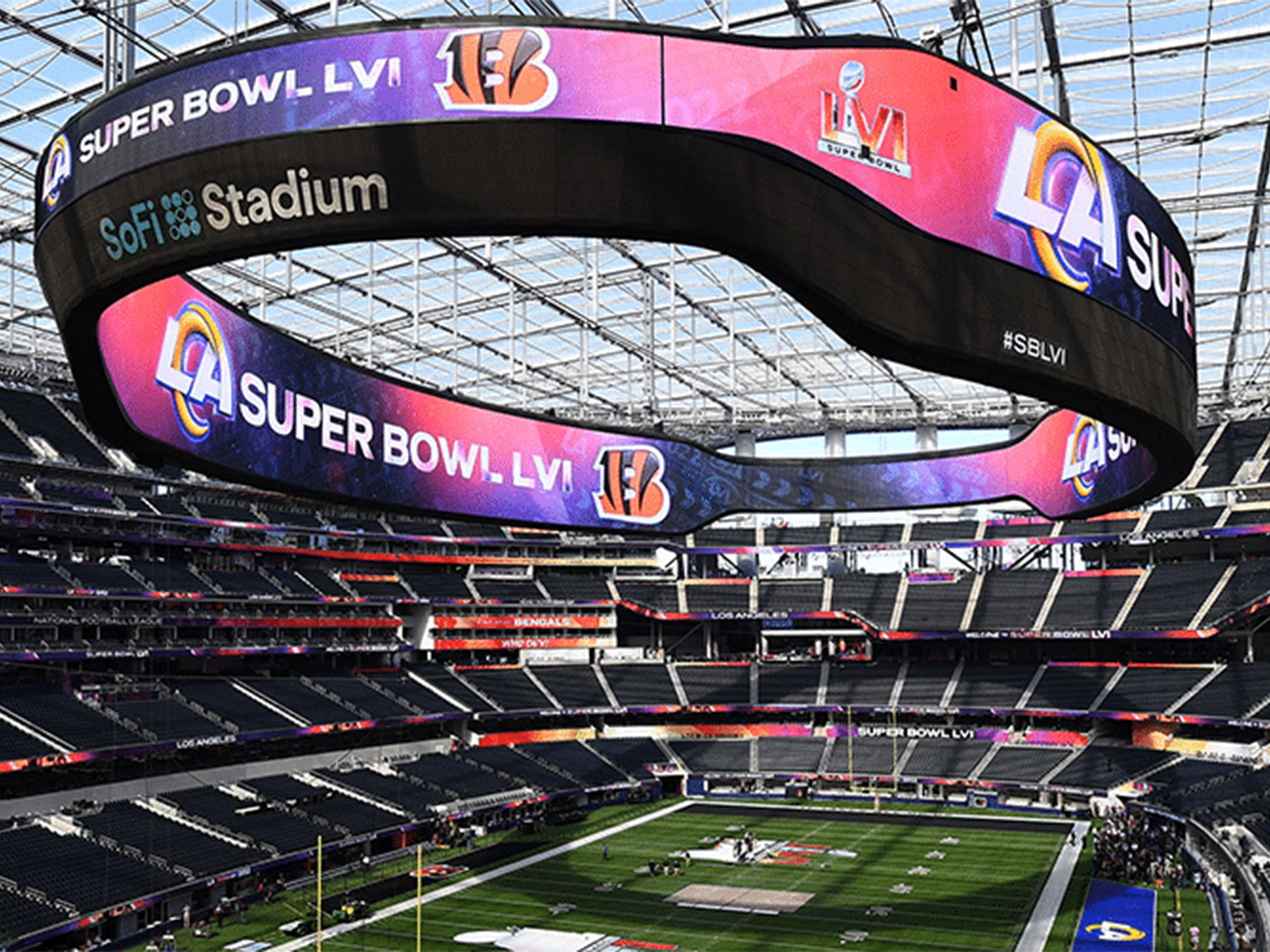

With the three-fold advantages of "protection + creativity + safety", the product has been successfully applied in many benchmark projects: in a cultural and tourism scenic spot, a 2000㎡ wave-shaped flexible module composed of mountain projection screens still operates stably after experiencing the typhoon season; in the commercial pedestrian street, the cylindrical interactive advertising column made of flexible modules completes the overall construction in 3 hours through the quick installation system; at the large-scale music festival site, the suspended ribbon screen ensures zero safety accidents during the high-altitude performance with the help of the safety rope design.

Choose Us: More Than a Product, It's a Safety Commitment

We deeply understand the long-term operation value of outdoor display projects, so we not only provide the product itself, but also support the service system of "three-year warranty + 7×24-hour emergency response". Each batch of products has undergone high and low temperature cycle tests from -40℃ to 60℃ and 1000-hour salt spray corrosion test to ensure stable performance in extreme environments.

If you are looking for an outdoor display solution that combines creative expressiveness and safety reliability, please feel free to contact us to obtain detailed technical specifications and project cases. Let us use innovative technology as a pen and safety protection as ink to outline a more imaginative visual picture in the urban space.
