Zhixian Linuo Upgraded LED Outdoor Screen Module

Outdoor LED display devices have long faced dual challenges from the natural environment and construction efficiency. According to industry operation and maintenance statistics, approximately 65% of outdoor screen failures stem from environmental erosion, among which the annual maintenance cost caused by the limited protective structure of traditional modules accounts for more than 40% of the total project investment. Zhixian Linuo (Shenzhen) Technology Co., Ltd. has been deeply engaged in the LED display field for ten years. It has carried out technological iterations to address the protective shortcomings and installation pain points of ordinary modules, and launched a new generation of upgraded LED outdoor screen modules. While maintaining compatibility with traditional modules, it achieves a dual breakthrough in protective performance and construction efficiency.

Protective System Upgrade: Multi-dimensional Enhancement of Outdoor Adaptability

Ordinary outdoor screen modules generally adopt a basic protective design of "semi-open backplane + rubber sealing ring", with a protection level mostly at IP65. According to the IEC 60529 standard, although IP65 can resist low-pressure water jetting, the large number of heat dissipation holes on the backplane and the simple interface sealing still have obvious limitations in extreme scenarios such as continuous heavy rain and strong sandstorms - rainwater is easy to pour back along the holes, and sand accumulation will accelerate the oxidation of the circuit board, requiring disassembly and maintenance of core components every 18 months on average.

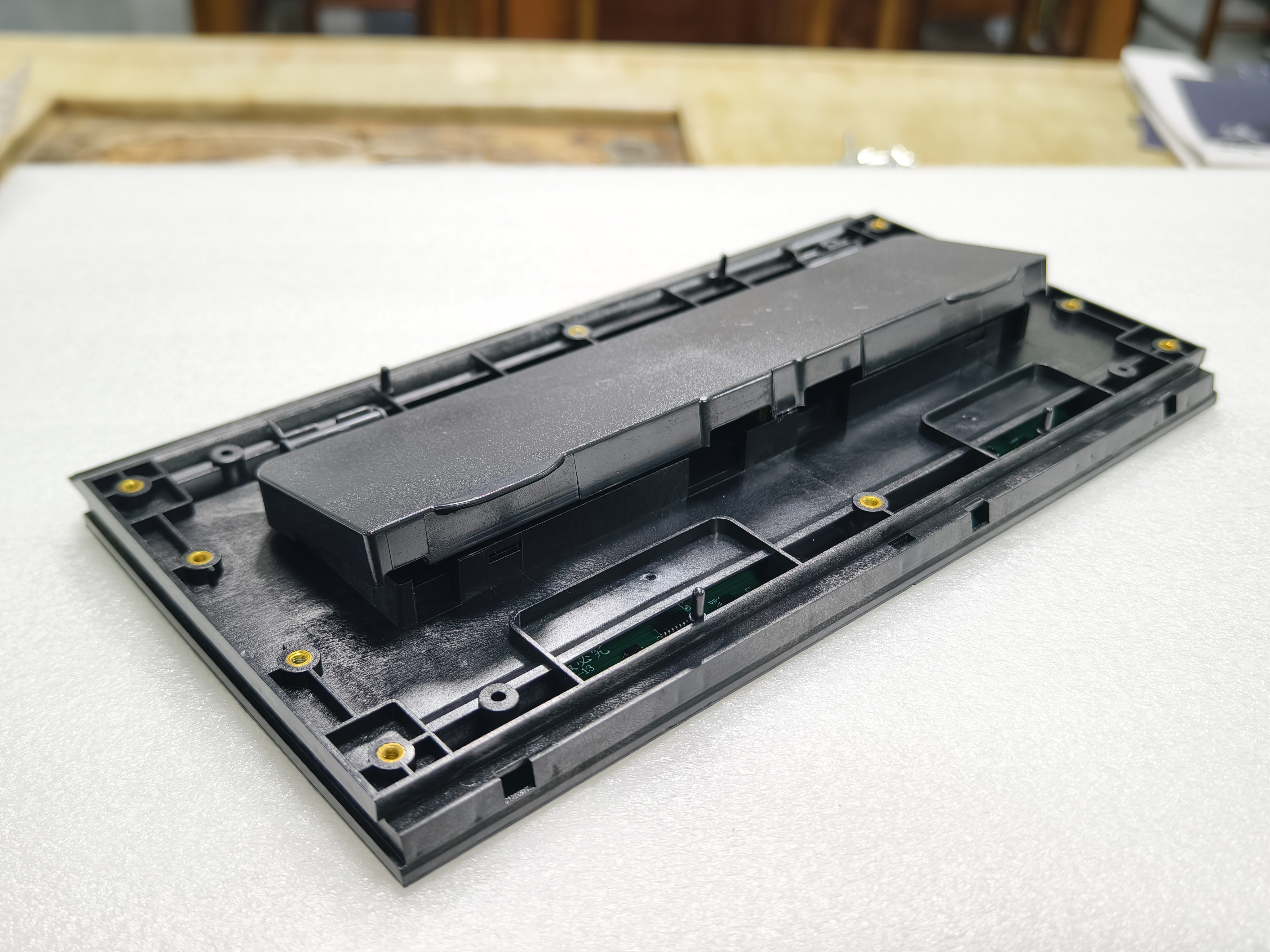

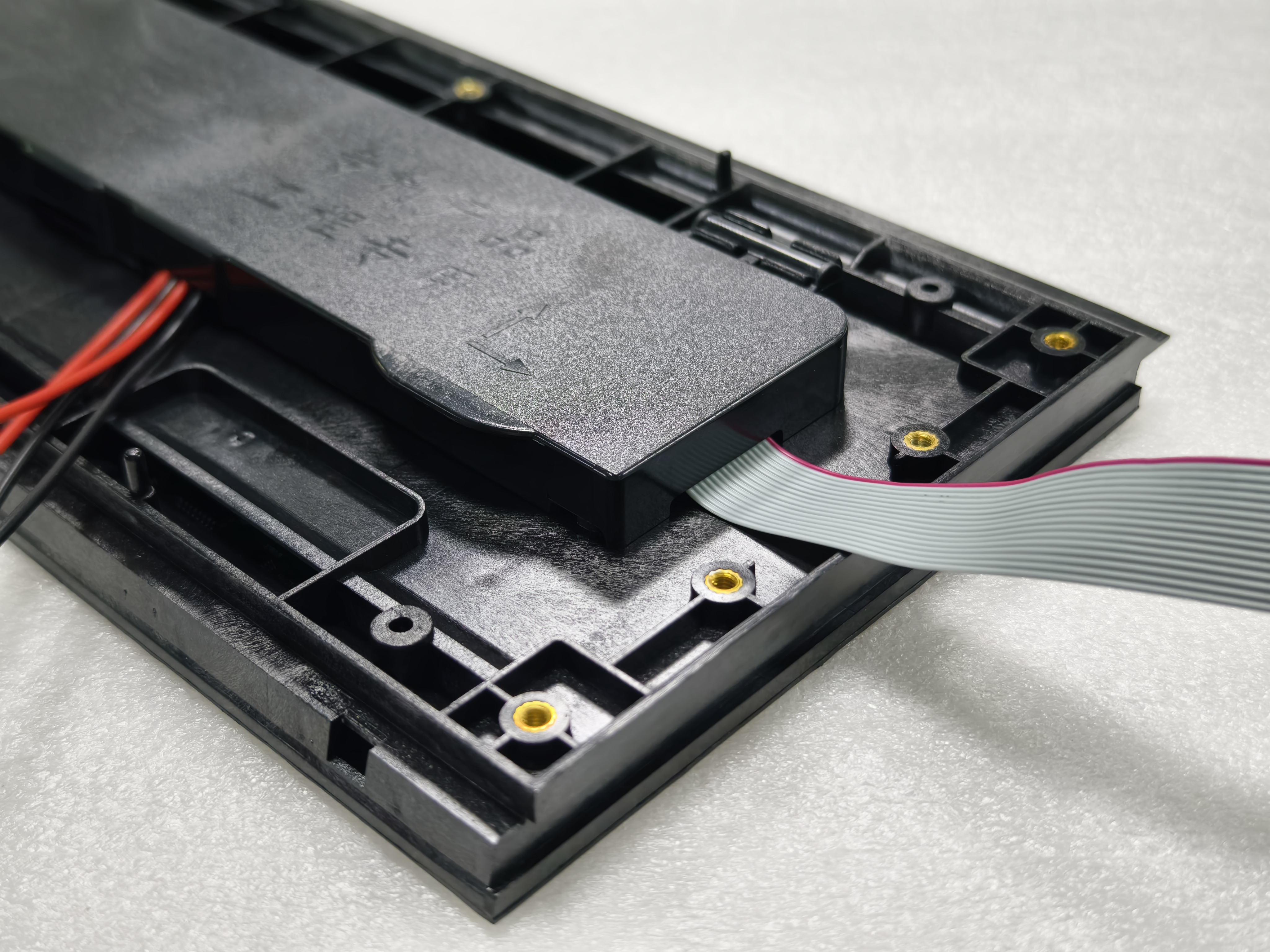

Zhixian Linuo's upgraded module builds a dual protective system of "physical isolation + active drainage", with significantly improved protective effect compared to ordinary IP65 modules: In terms of structural design, it adopts a nearly fully sealed backplane process, leaving only a flip-type protective cover at the interface position. When closed, it can effectively block heavy rain scouring and sand intrusion, greatly reducing the failure risk caused by environmental factors; at the circuit board level, it innovatively adopts a full-coverage epoxy resin potting process, which improves the waterproof and insulating performance by 3 times compared to the partial gluing of ordinary modules. Even if extreme water vapor intrusion occurs, it can ensure circuit safety. At the same time, the module integrates drainage grooves on the side and drainage holes at the bottom to form a three-dimensional drainage network. The drainage efficiency in heavy rain is twice that of the traditional design, fundamentally solving the problem of water accumulation. The module is suitable for temperature difference environments from -30℃ to 60℃ and complex outdoor scenarios such as coastal areas and deserts, and the maintenance cycle is extended to more than 36 months compared to ordinary modules.

Heat Dissipation System Adaptation: Stable Solution Under Sealed Structure

Ordinary outdoor screen modules rely on open-hole heat dissipation design, while the upgraded module achieves precise adaptation of heat dissipation requirements through structural optimization while strengthening the sealed protection. Its backplane adopts a louver-type directional heat dissipation hole design. The 15° downward inclined opening angle not only ensures the natural upward discharge of hot air flow but also physically prevents rainwater from pouring in from the top; combined with the selection of low-power drive chips, it forms an efficient heat conduction path. Actual tests show that when the module operates at full load in a 45℃ environment, the temperature of the core components is controlled within 75℃, the brightness attenuation rate is ≤5%, and the color deviation ΔE is ≤2, which meets the technical requirements for long-term stable display outdoors.

Installation Process Optimization: Dual Improvement of Standardization and Precision

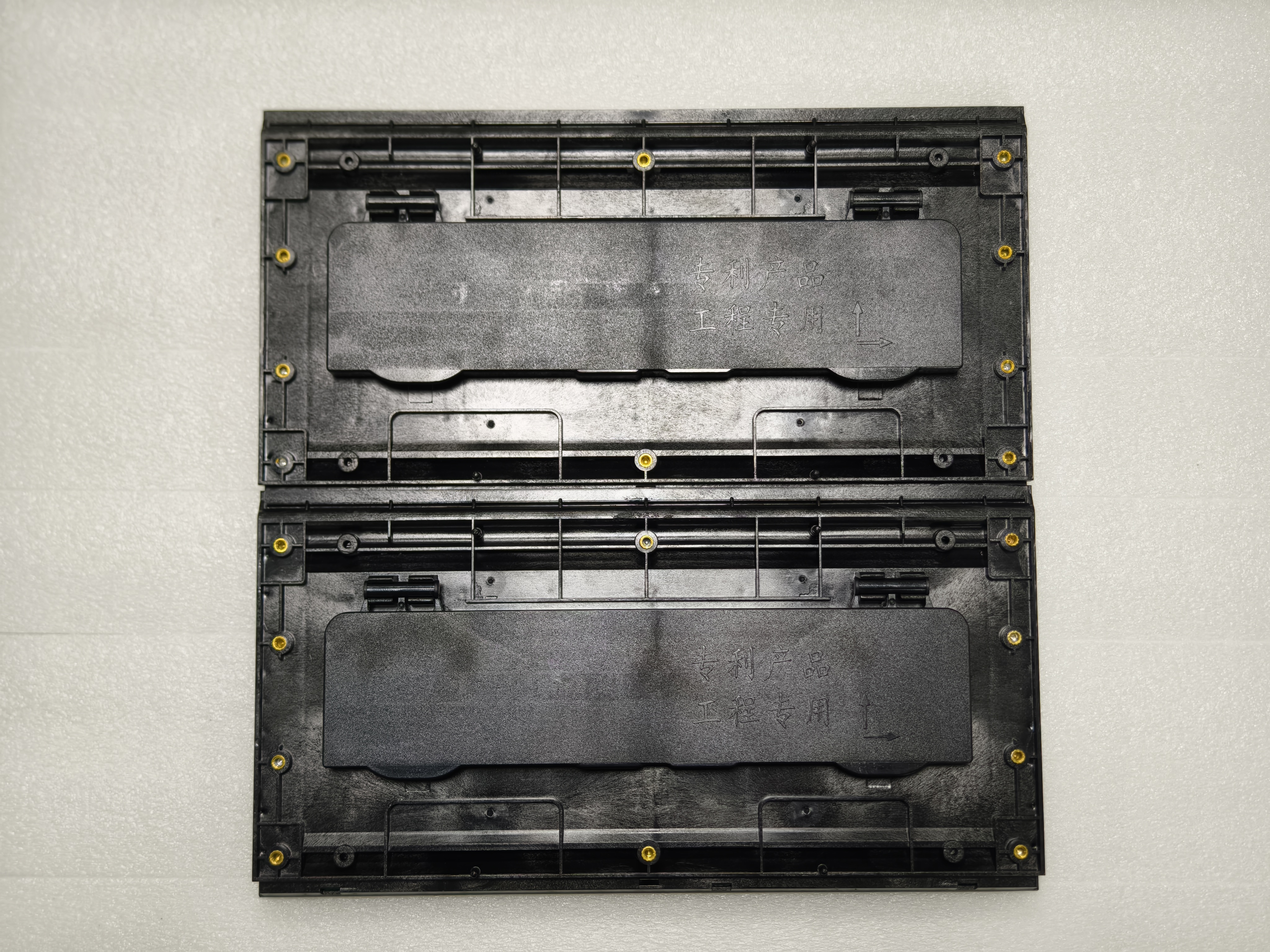

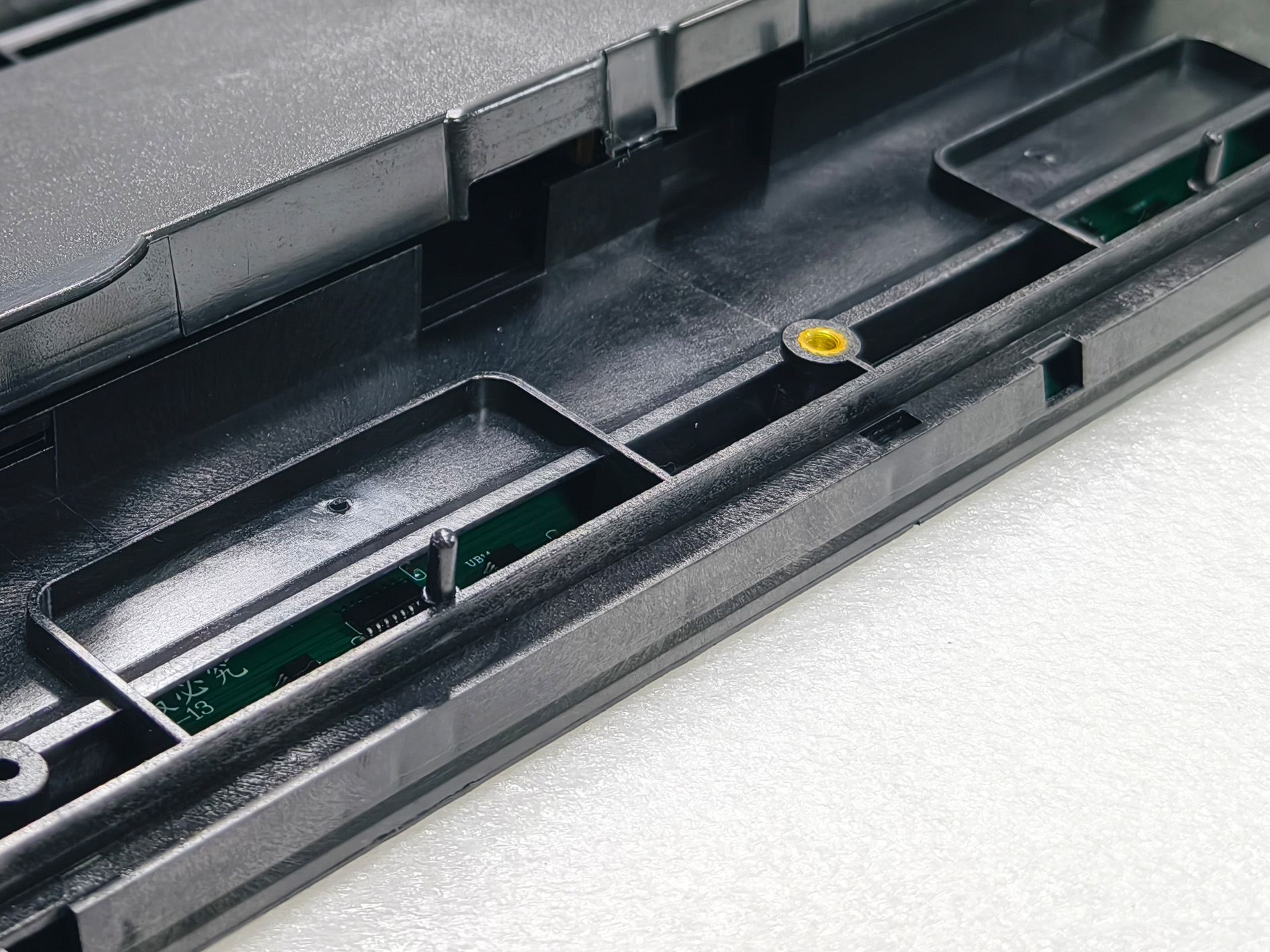

Traditional outdoor screen modules are mostly installed in the mode of "buckle + screw fixing", and the positioning accuracy completely depends on manual calibration. The installation time of a single module is about 8-10 minutes, and the splicing gap is prone to a deviation of ±0.5mm. The cumulative error during large-area splicing will lead to picture display faults. On the basis of being compatible with traditional installation holes, Zhixian Linuo's upgraded module innovatively integrates top and bottom matching rails and four precision positioning columns on the back: the rail structure realizes automatic alignment when the modules are spliced, and the positioning accuracy is controlled within ±0.1mm; theinterlocking design of the positioning column and the special box shortens the installation time of a single module to 3-5 minutes, and the construction efficiency is increased by 60%. At the same time, the module supports a magnetic front maintenance structure. In addition to screw fixing, magnets can be installed to realize quick disassembly and assembly from the front, which is especially suitable for narrow installation spaces or later maintenance scenarios, further reducing the maintenance difficulty. The edge of the module adopts CNC precision cutting technology, and the splicing gap is compressed to less than 0.3mm, ensuring the picture consistency of large-area display screens.

Brand Guarantee: Ten Years of Accumulated Technical Endorsement

As the core manufacturing base of the Lino Visino brand, Zhixian Linuo (Shenzhen) Technology Co., Ltd. has built a sales and after-sales service network covering 30 provinces in China based on the industry accumulation of its parent company since its establishment in 2015. The company has a 12,000㎡ standardized production workshop with an annual production capacity of 500,000㎡, and has passed ISO9001 quality management system, CE, RoHS and other international certifications. Over the past ten years, the company has actively expanded overseas markets and accumulated rich experience in export projects. Its business covers more than 50 countries and regions including the United States, Germany, the United Kingdom, France, Australia, Brazil, India, the United Arab Emirates, South Africa, and Russia. This upgraded module continues the brand's service commitment of "three-year warranty and 7×24-hour response", providing full-process technical services from early scheme design, mid-term installation guidance to later operation and maintenance support.

If you are troubled by issues such as the protective durability and installation efficiency of outdoor screens, please feel free to contact us at any time to obtain the detailed technical white paper (specification sheet) and on-site application cases of the upgraded module. Zhixian Linuo will provide more reliable and efficient solutions for your outdoor display projects with its iteratively innovative product strength.
