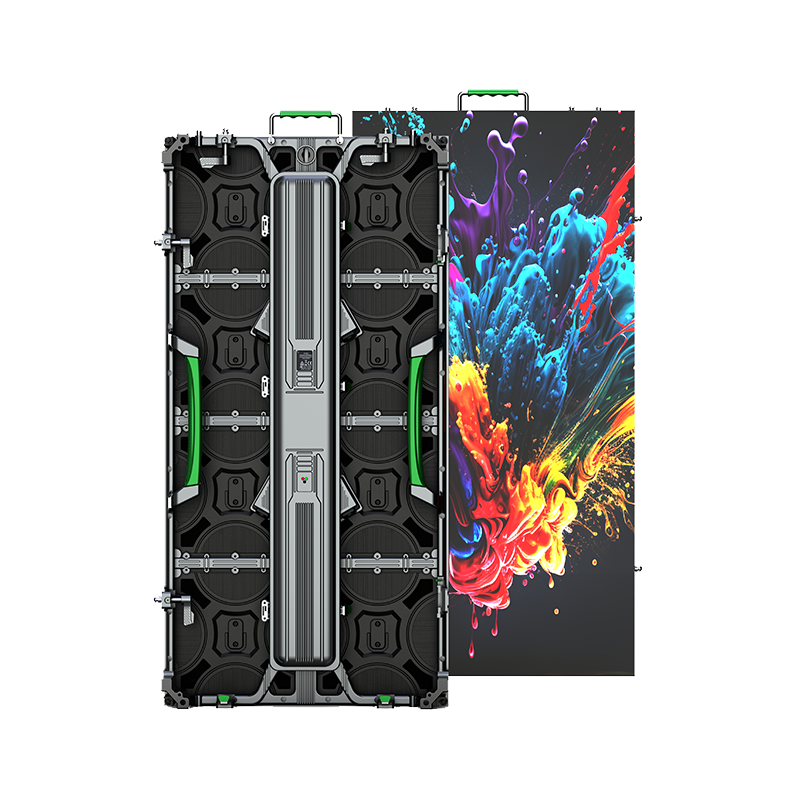

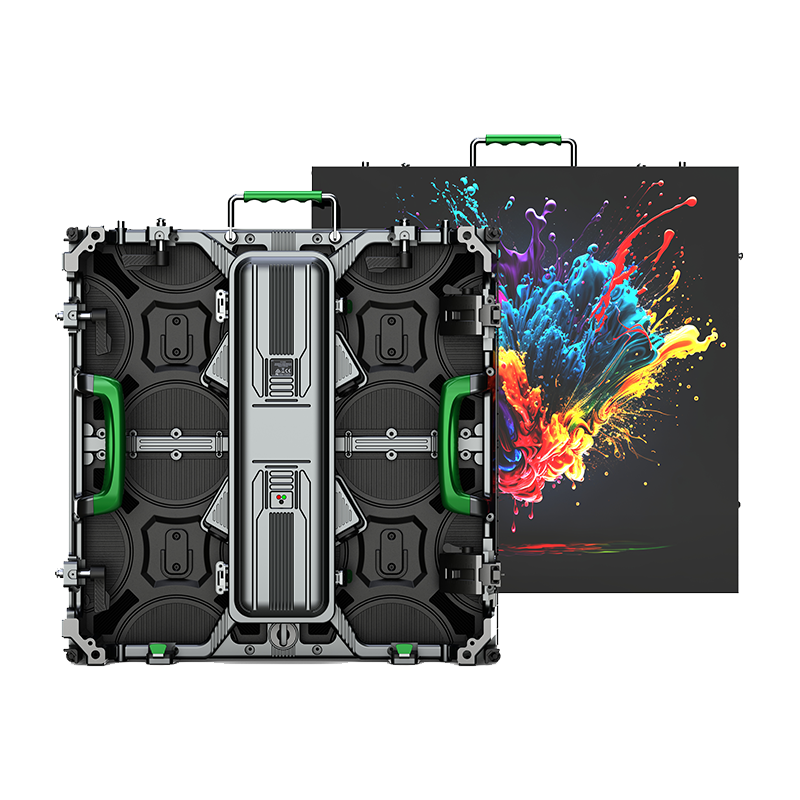

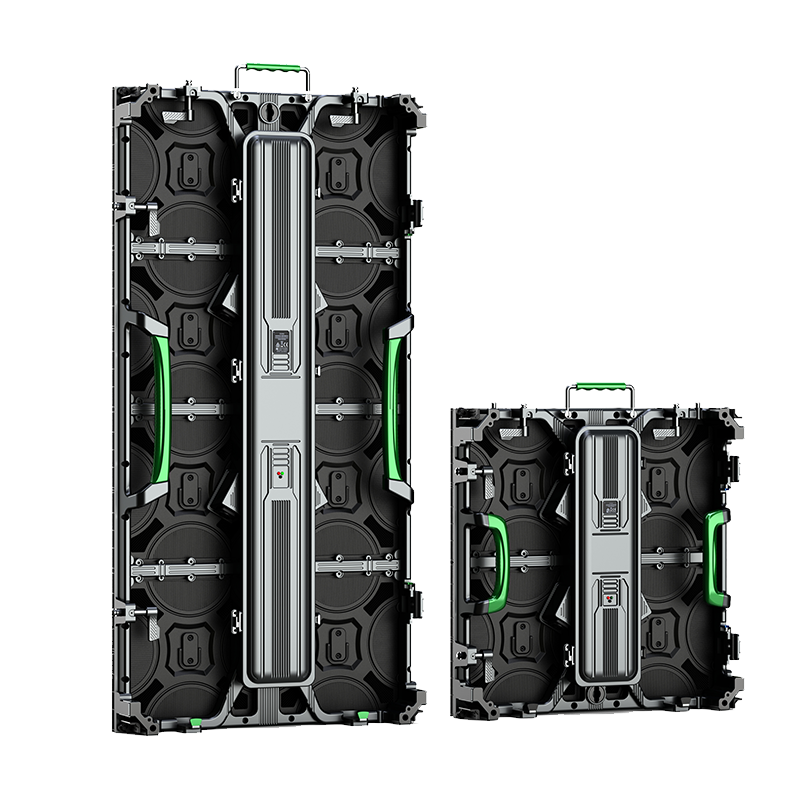

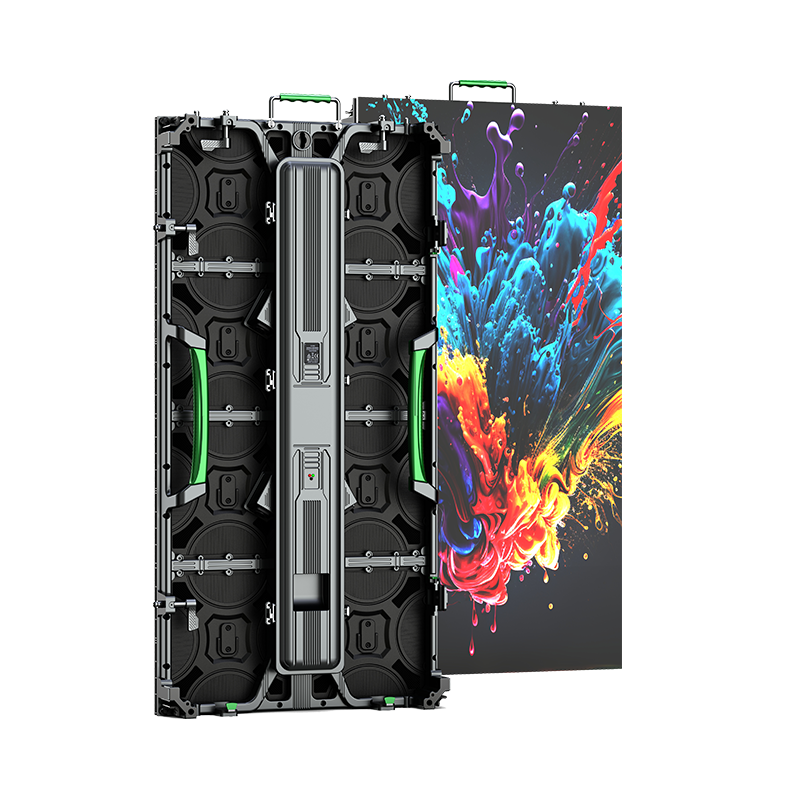

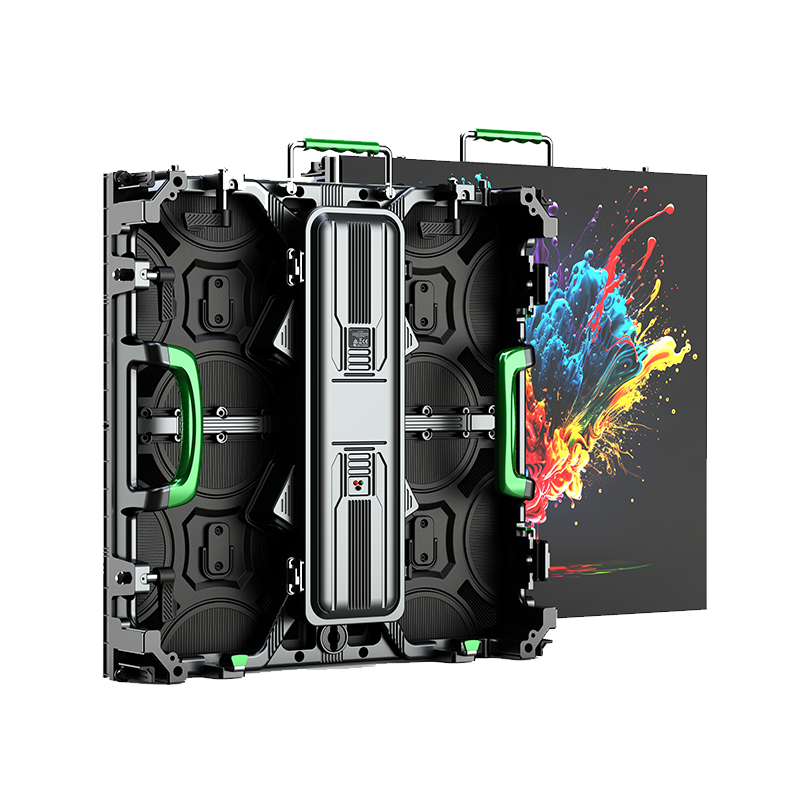

LED Rental Screen
● The LED Rental Screen's cabinet is constructed of die-cast aluminum, offeringhigh strength, strong toughness, and high precision while resisting deformatio.
● Excellent insulation, moisture-proof, water-proof, anti-corrosion, anti-aging. And high-temperature resistance.
● It's lightweight and ultra-thin, and can be installed quickly.

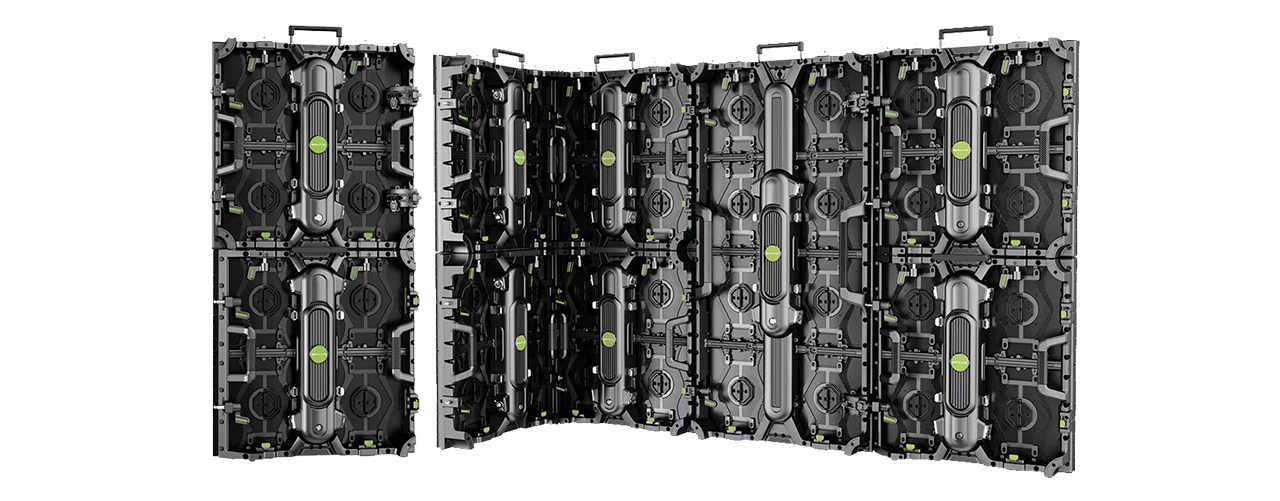

Curved cabinets
It supports right-angle splicing, internal and external arc splicing, and the splicing of large and
small cabinets, greatly meet theconstruction needs of different areas.

Size

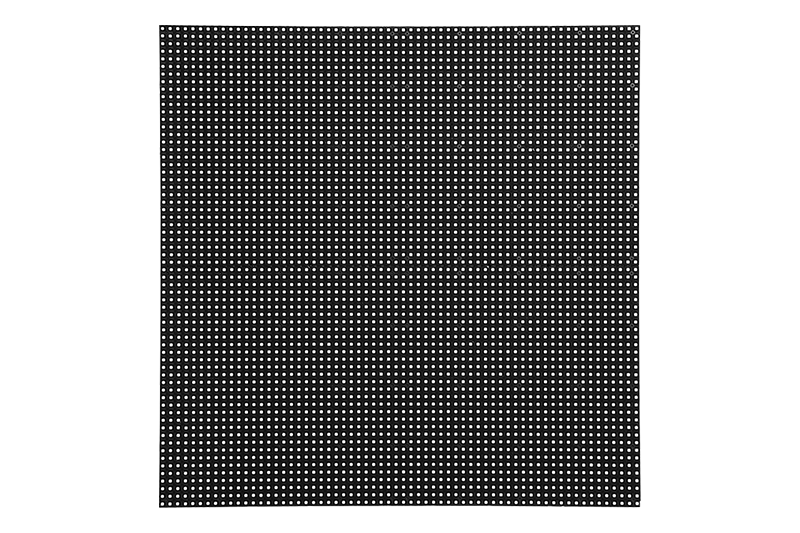

01Module Size:250x250mm
LED:SMD1515/SMD2020/SMD1921
Specification
01Pixel Pitch: P2.604/P2.976/P3.91/P4.81
Brightness: Indoor:600cd-800cd
Outdoor: 3500 ~4500cd

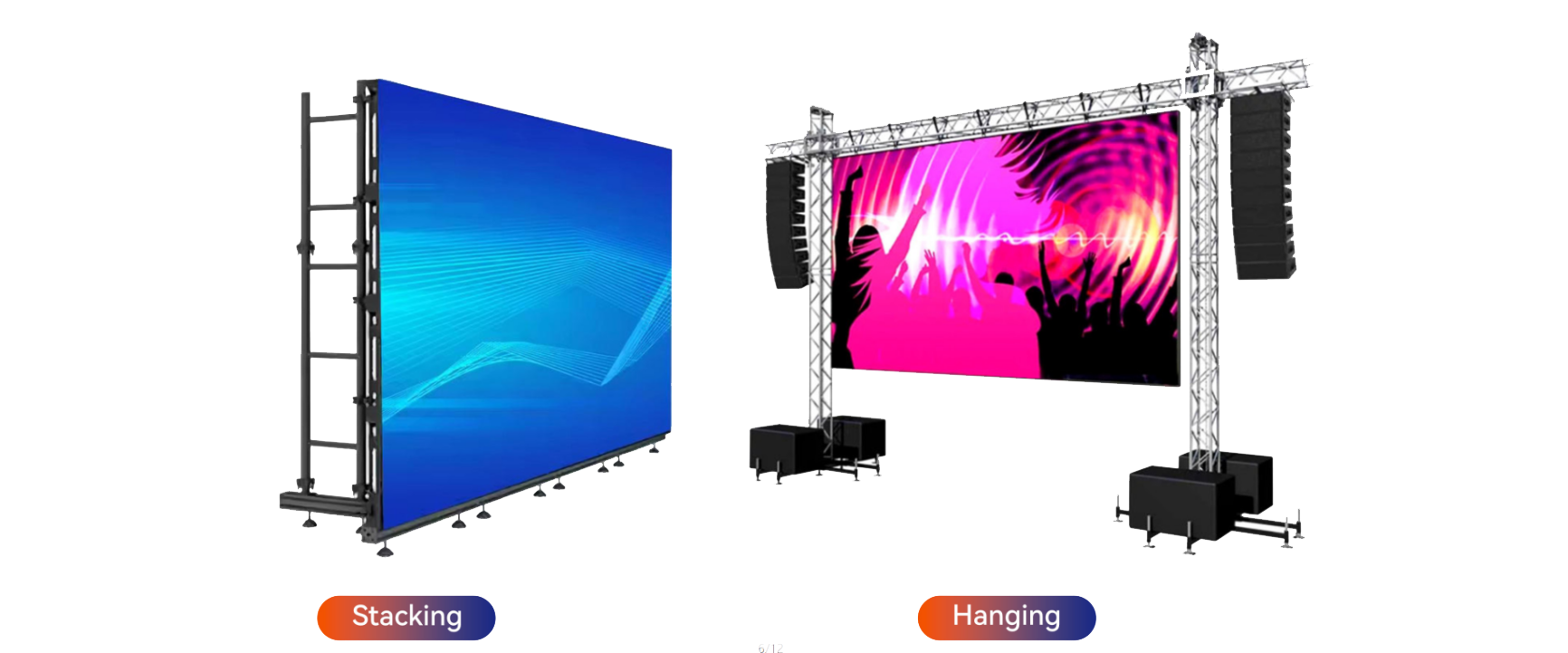

Installation method

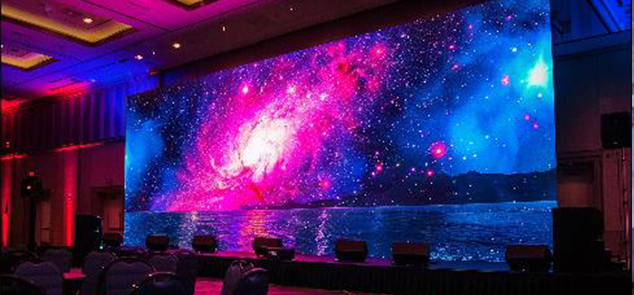

Business Performance

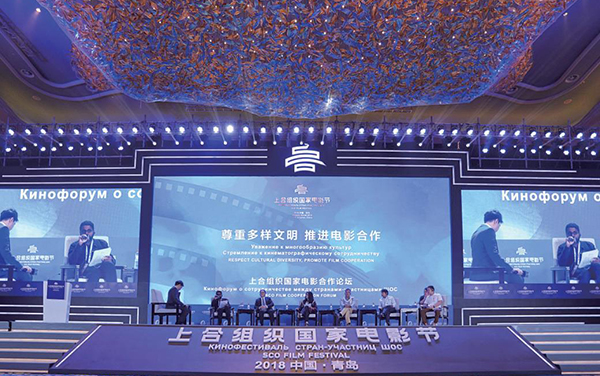

Symposium
Meeting Central

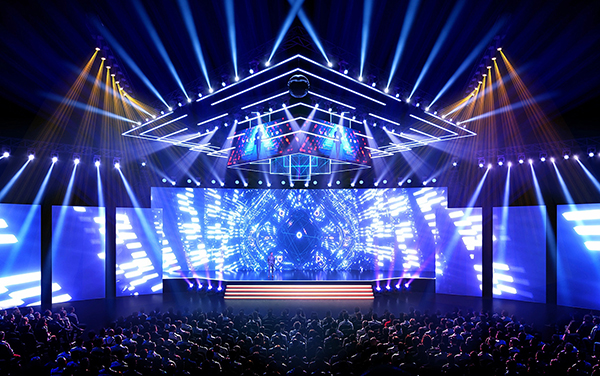

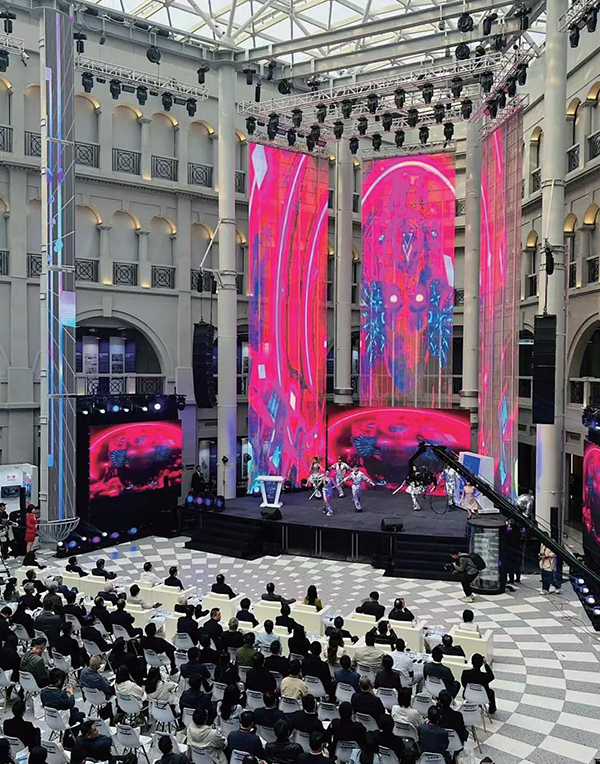

Concert

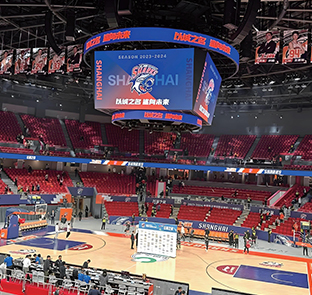

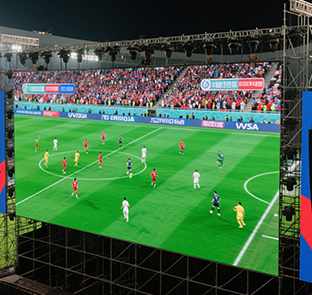

Sports Events
Competition Scene
Model |
LNP2.6 |
LNP2.97 |
LNP3.91 |
LNP4.81 |
Module Size |
250*250mm(9.84*9.84in) |
|||
Module Pixel |
96*96 |
84*84 |
64*64 |
52*52 |
Scanning Method |
32 |
21 |
16 |
13 |
Pixel Configuration |
1R1G1B |
|||
Maintenance Method |
Front/rear maintenance |
|||
Cabinet Size |
500*500500*1000 |
|||
Cabinet Pixel |
192*192 |
168*168 |
128*128 |
104*104 |
Density(DOT/m²) |
147456 |
112896 |
65536 |
43264 |
Brightness(CD/m²) |
3000-4000 |
4000-5000 |
||
Box Material |
Die-cast aluminum cabinet |
|||
Cabinet Weght |
6.5kg(14.33Ib) |
|||
Waterproof Level |
IP65 |
IP66 |
||
Contrast Ratio |
≥5000:1 |
|||
Grayscale Level |
16bit |
|||
Refresh Frequency |
≥3840 |
|||
Frame Frequency |
60HZ |
|||
View Angle |
160°/140°(HM) |
|||
Working Voltage |
DC4.2-5V |
|||
Max.Power Consumption |
800W/m² |
|||
Ave.Power Consumption |
300W/m² |
|||
Working Temperature |
-20℃+60℃ |
|||
Working Humidity |
10%RH~90%RH |
|||
Service Life |
≥100000h |
|||
